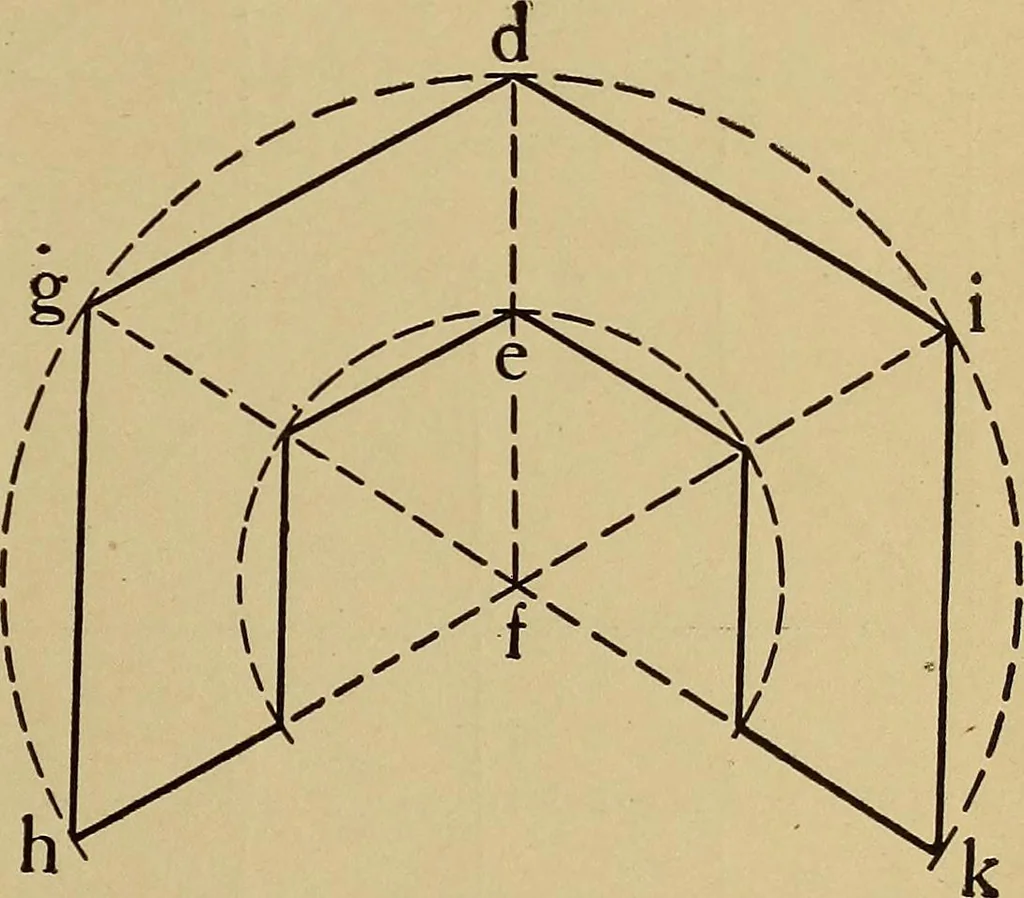

from the center a to b, and mark off the same fromg to d. Take the distance from a to 1 or k, andmark off the same from h to e. Draw a line through the points d, e, to cut the perpendicular line at f.Then draw the perpendicular line af, Fig. 132, andtake the radius fd, Fig. 131, and with it… … 57 Fig. 132. fe in Fig. 131, and with f in Fig. 132 as a center,draw the smaller arc e. Take the length of oneside of the base from c to b, Fig. 131, and mark offthe same four times on the circle hdk at h, g, d, i, k. 58 MECHANICAL DRAWING Draw through these points to the center f, jointhese points…
