Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 314

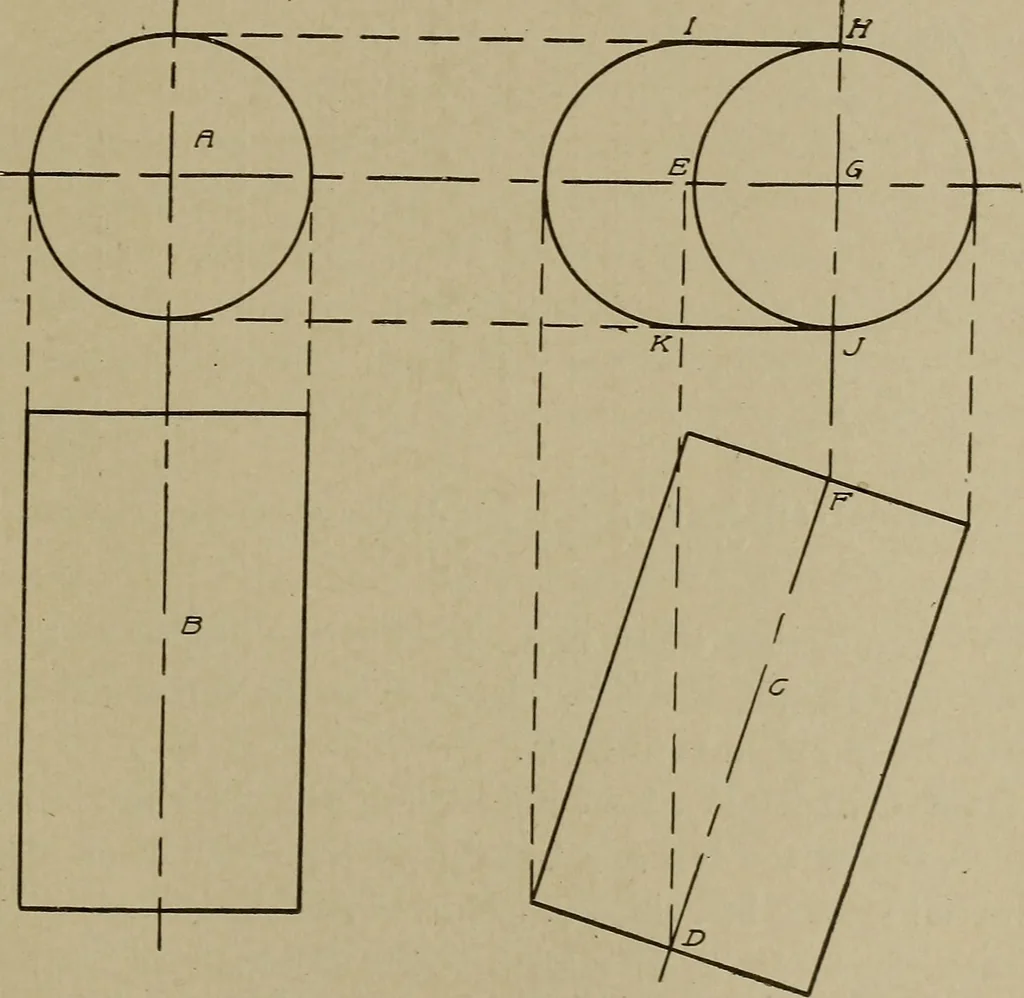

Fig. 127. Plan, Front, and Side Views after Revolving Pyramid in Fie l* through 30 Degrees with Horizontal Plane … Fig. 128. Projections of Cylinder Inclined to Horizontal Plar 159 94 MECHANICAL DRAWING has simply been inclined to the horizontal plane, but kept parallelbe vertical plane. The point D, the center of the circle formingthe base of the cylinder, is projected up to the point E, and withthis point as…
