Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 242

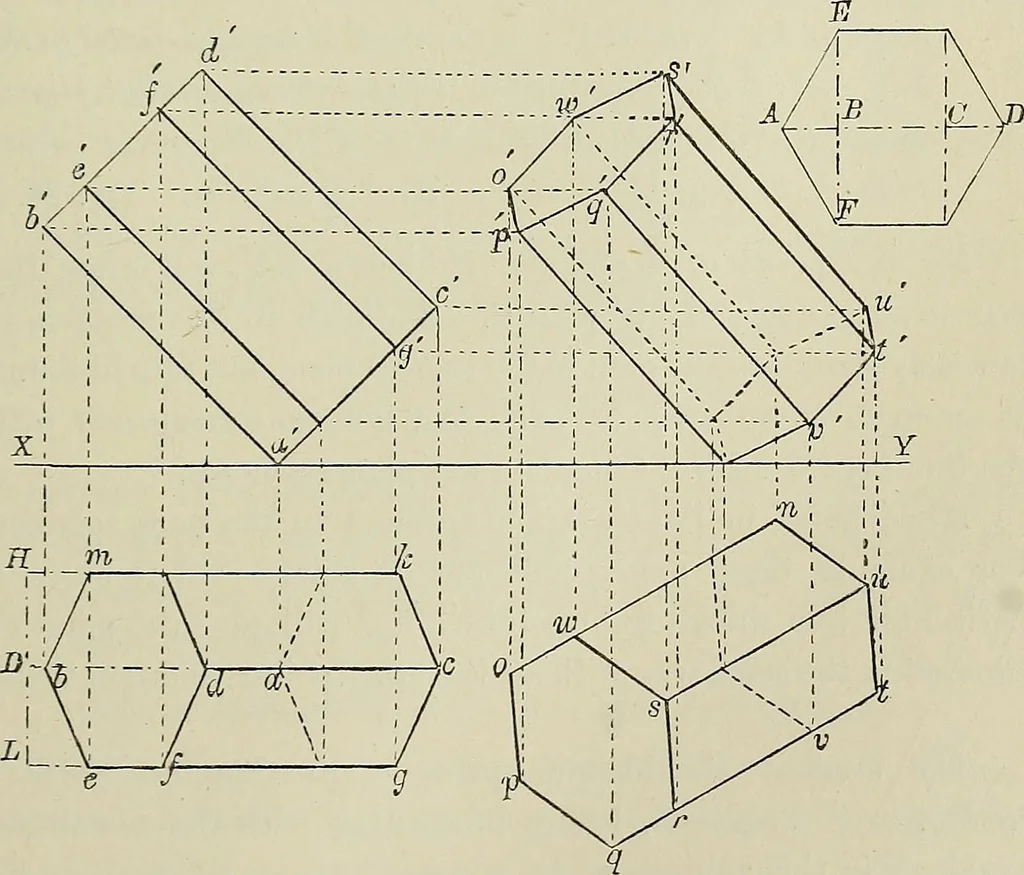

ts a horizontal line drawn from point e. Thisgives the point r. Find the other points in the same way, andjoin them, as shown. Problem 15. To lyvojcet a regular liexagonal prism, ^\ long, loith faces 2V wide,resting on one corner on the H.P.: its longer edges to heinclined at an angle of 45° luith… … FiR 25. Fiff. 26. Draw the line XY, and at any point a draw the line ah, 7j 222 SOLID GEOMETRY chap, xviii long, at an angle of 45 with XY. From tlie points a and Vdraw the lines clc and Vd perpendicular to ah. Set off thedistances V, c,f, d on hd equal to A, B, C, D of hexagon, and drawlines from…
Geometrical drawing
