Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 341

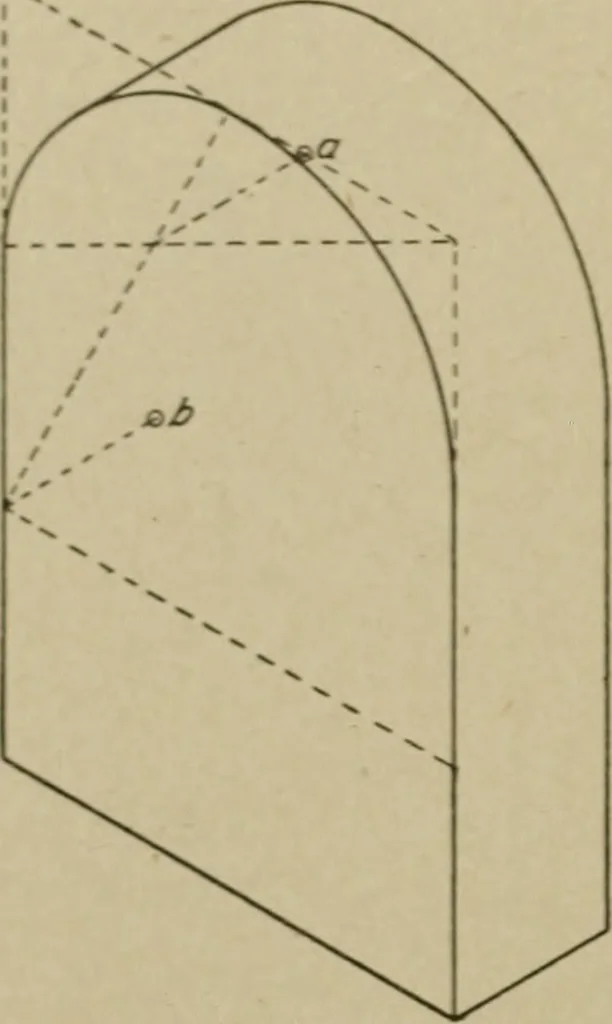

c d and equal to itin length, and connect with b. Fig. 162. End View of Box Shown in Fig. 161 185 MECHANICAL DRAWING It will be seen that in isometric drawing parallel lines alwaysear parallel. It is also true that lines divided proportionallymaintain this same relation in isometric drawing. P r is… … Fig. 1<>3. Isometric of a Prismwith Semicircular Top
Mechanical drawing · Blueprinting
