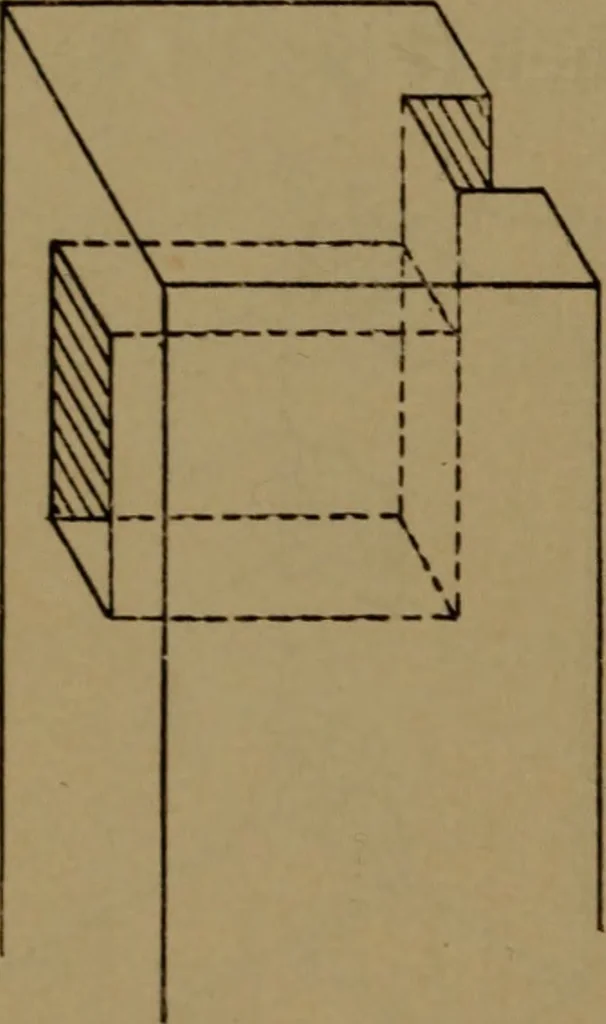

Fig. 82. 48 ELEMENTS OF MECHANICAL DRA WING, Exercise 6. — Draw a joist and flooring (Fig. 85).Exercise 7. — Draw a beam and stirrup (Fig. ^6^. Note. — The pupil will make sketches of the following, tongue and groove anddovetail, from objects, not from drawings, and make working drawings of the… … ^ Fig. 83.
