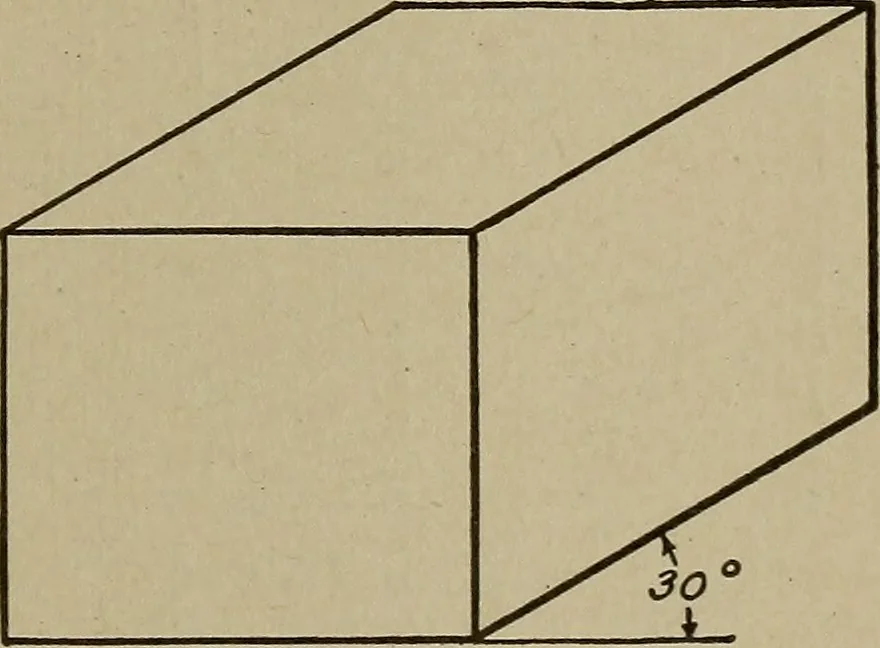

educed fromorthographic projection, as is iso-metric. Characteristics of Method. Inoblique projection all lines in thefront face are shown in their truelengths and in their true relation toone another, and lines which are per-pendicular to this front face areshown in their true lengths at anyangle… … Fig. 174. Oblique View of Cube at 30Degrees 189 124 MECHANICAL DRAWING poss me advantages over the isometric, as, for instance, in the itation of circles, as any circle or curve in the front face is actually dnr .. Fig. 174, Fig. 175, and Fig. 176 show a cube in oblique projection with the…
