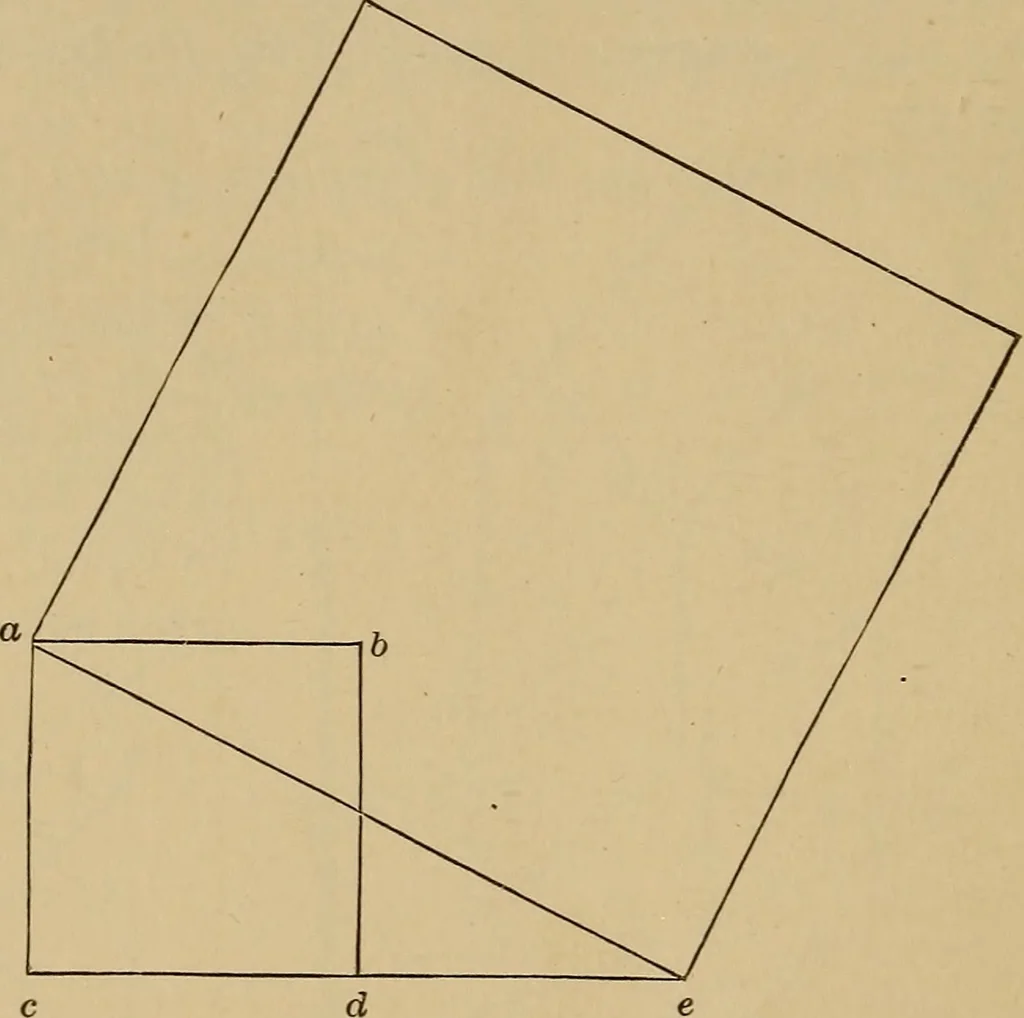

To construct a square equal to Jive times a given square (Fig. 95). Extend the base of the given square, making the extension to d e equal toc d. From e draw a line to a, and on this line construct a square, which willbe the square required. … Fig. 95. Assuming the side of the given square in Figs. 92, 93, 94, and 95 to be theradius (or diameter) (Fig. 96) of a given circle, then the side of the square tobe constructed half, twice, three, four, or five times the size of the given squarewill be the radii (or diameters) of the circles…
Mechanical drawing
