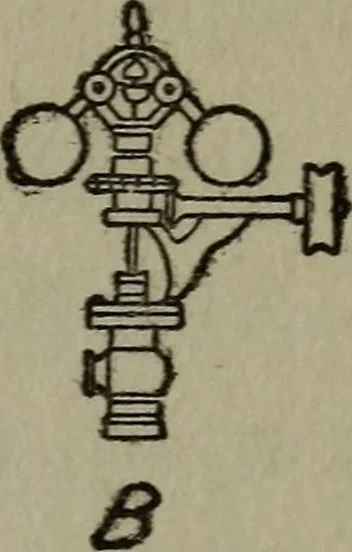

r ball gov-ernor, or fly ball governor, as it is variouslycalled, get a soft steel rod Vs inch in diameter Fittings for Model Engines 121 and 2V2 inches long for the spindle; file one endof it flat and drill a % 6-inch hole through it asshown at A, Fig. 49. Cut two strips of brass Viq inch thick,… … TO^ THROTTLE STBAriCHEST /I Fig. 49. An Easily Made Governor on each side of the flat end of the spindle anddrive a pin through all of them, tight. Make two fly arms of %2-inch brass or steelrod, % inch long; thread one end of each one andfile both of them a little flat in the middle and atthe…
Steam-engines
