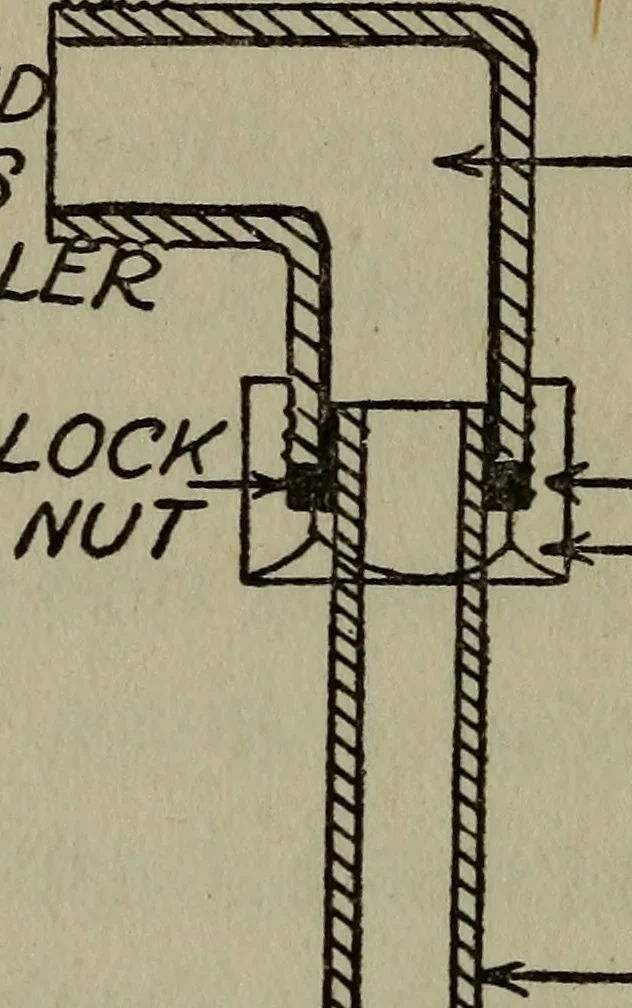

gauge to it. Calibrating the Dial.—To calibrate the gaugeyou have made, that is to graduate the face of it,or dial as it is called, you must borrow an accu-rate gauge and fix it in the boiler together withyour own. As the pressure rises in the boiler you simply 136 The Boys Book of Engine-Building… … LOCH NUT ■ELBOW RUBBERWASHER LOCKNUT GLASSTUBE &- TH/SENDF^52-SCREWS INTOBOILER S55S ^wvs^, 0 L RUBBER.WASHER -ELBOW Fig- S3- Cross Section of a Water Gauge blowing up for the want of water, you must fitit with a water gauge. This is a piece of glasstubing set into two elbows, one of which is…
