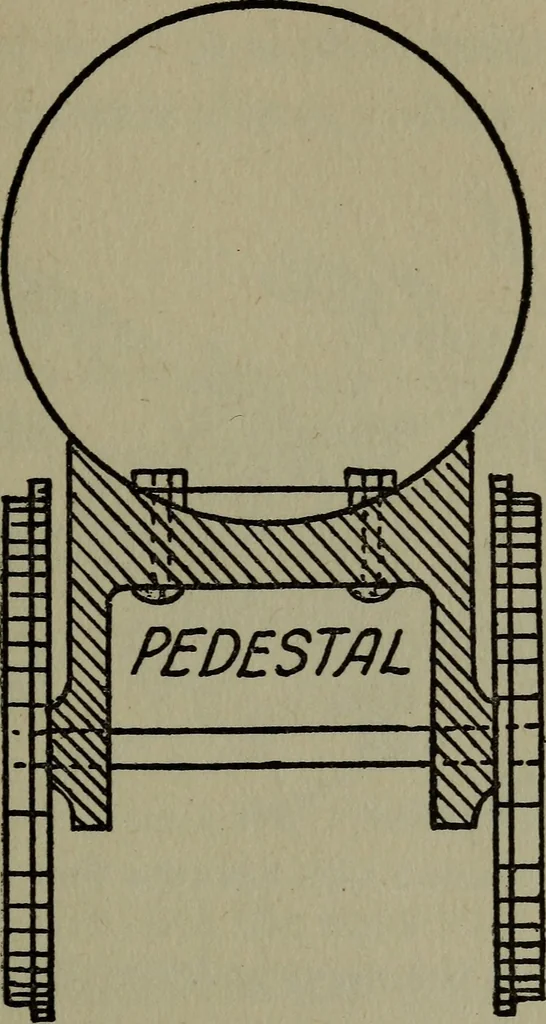

ightlyto keep the inside nut from working loose, or tolock it as it is called. Slip a collar, % inch high, over each crank pinon each of the rear driving wheels, then put onthe connecting rod and screw on a couple of nutsas before. Screw one end of both the front and rear axlesto a pair of the… … Fig. 63. How the Driving Wheels Are Mounted side of the pedestal to the axles the link valvegear must be made. The Link Valve Gear.—The purpose of thisgear is to reverse the engine. It must be made 168 The Boys9 Book of Engine-Building and the eccentrics, which are connected to it,must be keyed or…
