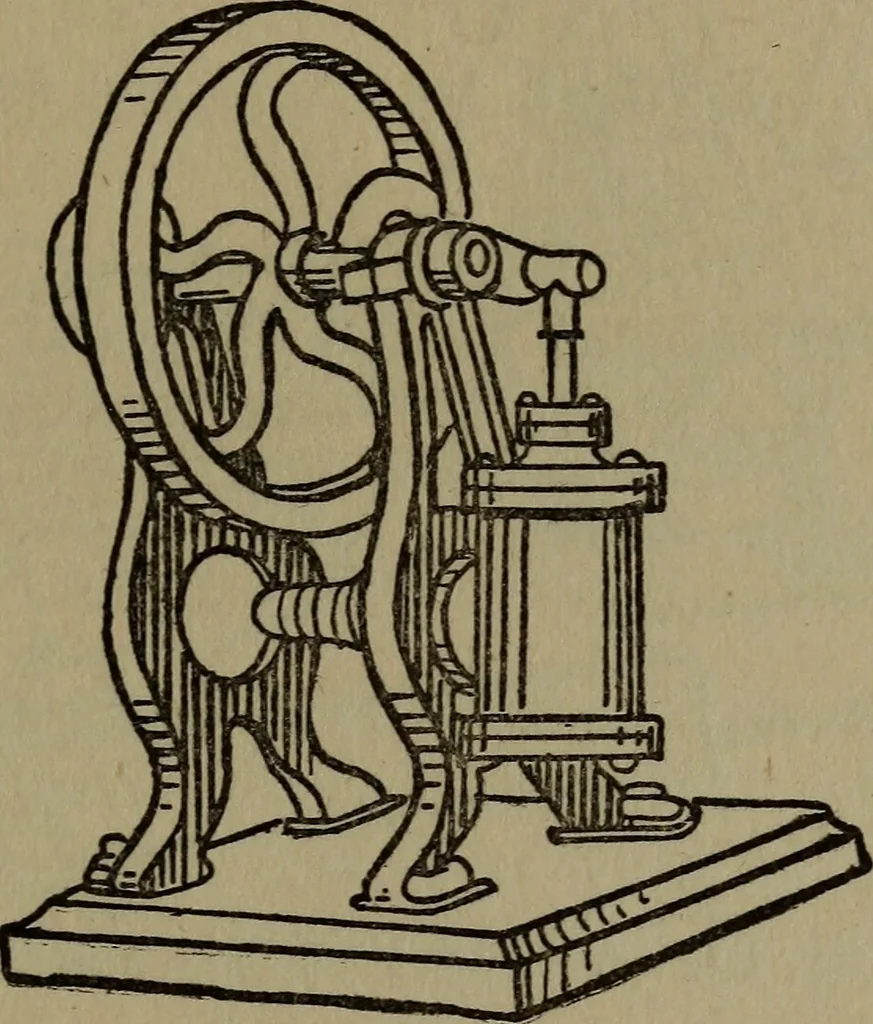

pendices 249 Castings for an Oscillating Engine.—A complete setof castings for making an oscillating cylinder engine offairly decent size can be bought of model works at theseprices: No. o Engine with J^-inch bore and i^-inch stroke $i-75 No. 1 Engine with i -inch bore and 2 -inch stroke 2.50 No. 2… … Fig. 82. An Oscillating Cylinder Engine Castings for the Corliss Type of Engine.—An up-to-date horizontal engine of the Corliss type as shown inFig. 81 is built just like a large engine, the design, con-struction and material being the same in every particu-lar. The cylinder has a i%-inch bore and…
Steam-engines
