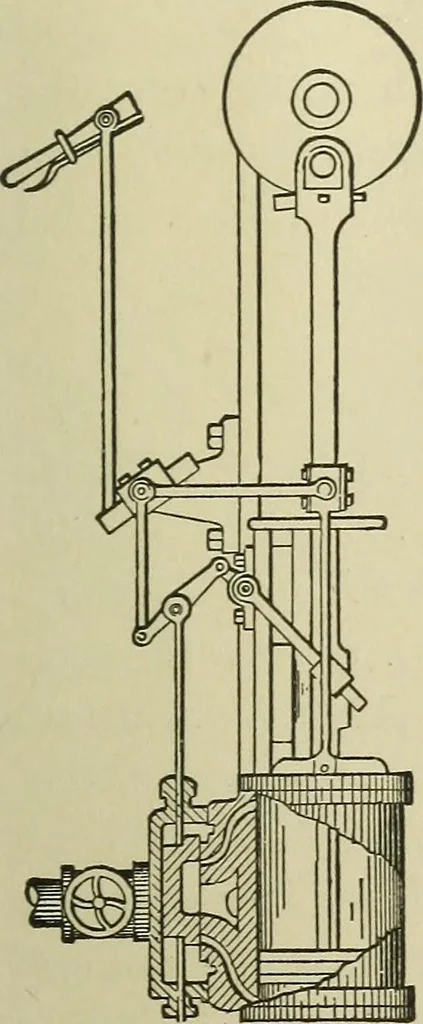

STEAM POWER APPLIANCES. 93 … 204. REVERSING GEAR without eccen-trics. The valve stem is connected to the middleof a short link, one end of which is pivoted to thecrosshead bar, and the opposite end to the radialbar, which in turn is pivoted to the link block.The latter member consists of a block of irongrooved to fit the…
