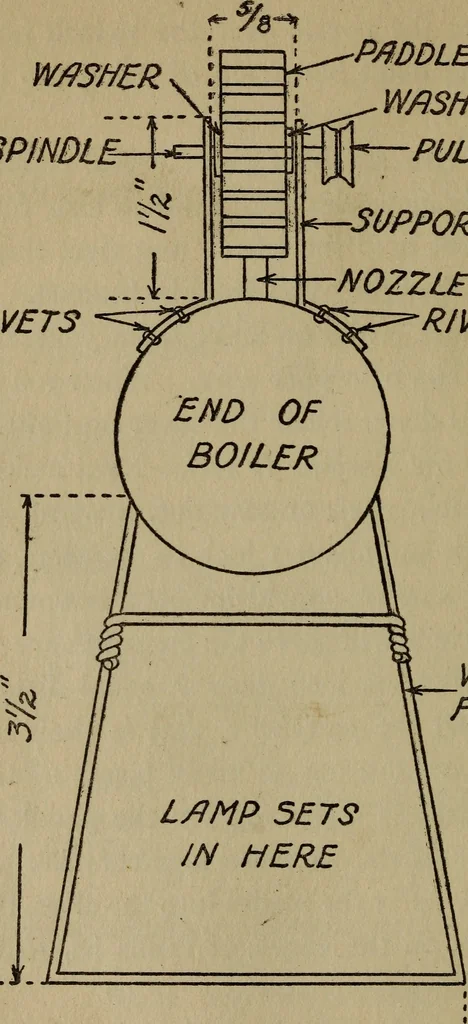

lots Vs inch deep at equal distancesapart around the periphery, that is the rim ofthe wheel, and cut out as many pieces of tin V2inch wide and V2 inch long for the paddles, orblades, or buckets, as these members are vari-ously called. Fix the blades into the slots, usingsealing wax on the edges, if… … WIREERME Fig. 16. End View of Turbine 38 Two Simple Steam Turbine Engines 29 and 1% inches long for the spindle, and push itthrough the hole in the wheel; be sure that itfits tight and sets absolutely true and be carefulnot to bend the blades. Slip a washer over each end of the spindle upclose to…
