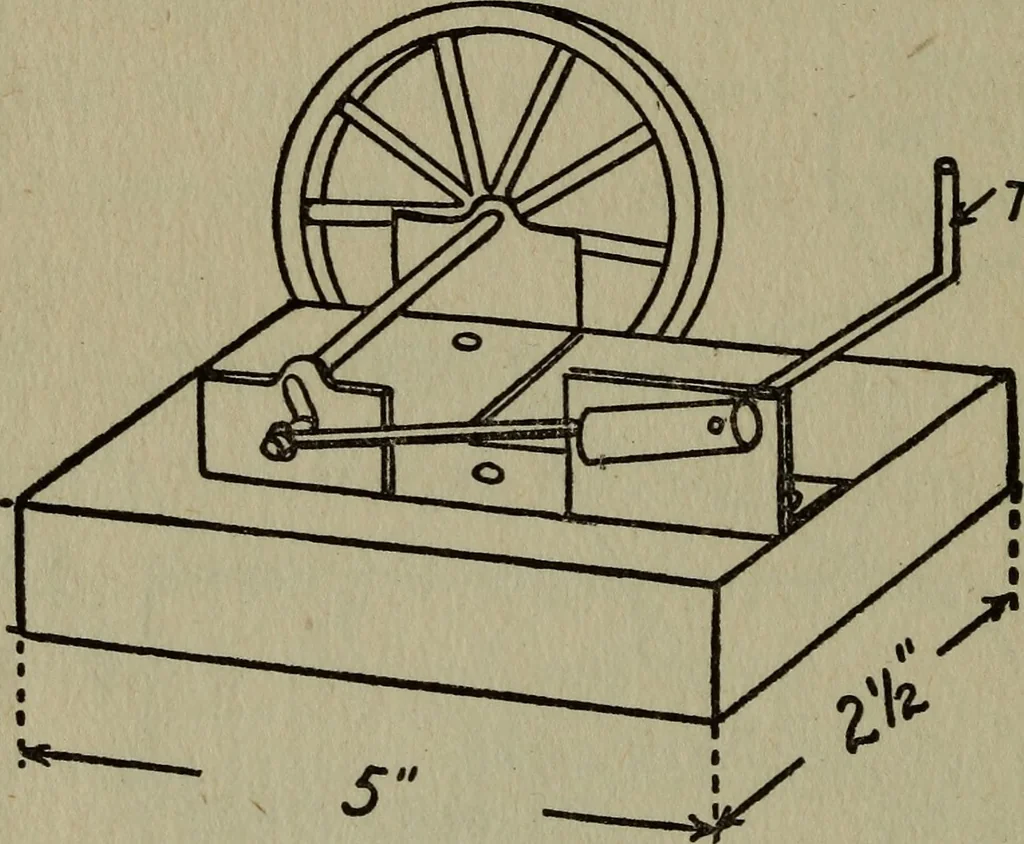

of the parts. Beginby screwing the frame to the bed of wood andhave the valve plate and bearing on the side withit flush, that is even, with one of the long edgesof the bed. 54 The Boys Book of Engine-Building Next slip the crankshaft through the bearingsof the frame and then fit the flywheel and… … TOBOILER Fig. 27. The Oscillating Cylinder Engine Complete hole in the frame, set the spiral spring over thepivot and screw on the nut. This arrangementpermits the cylinder to oscillate freely and at thesame time holds it close to the valve plate. Theengine complete and ready to run is shown inFig.…
