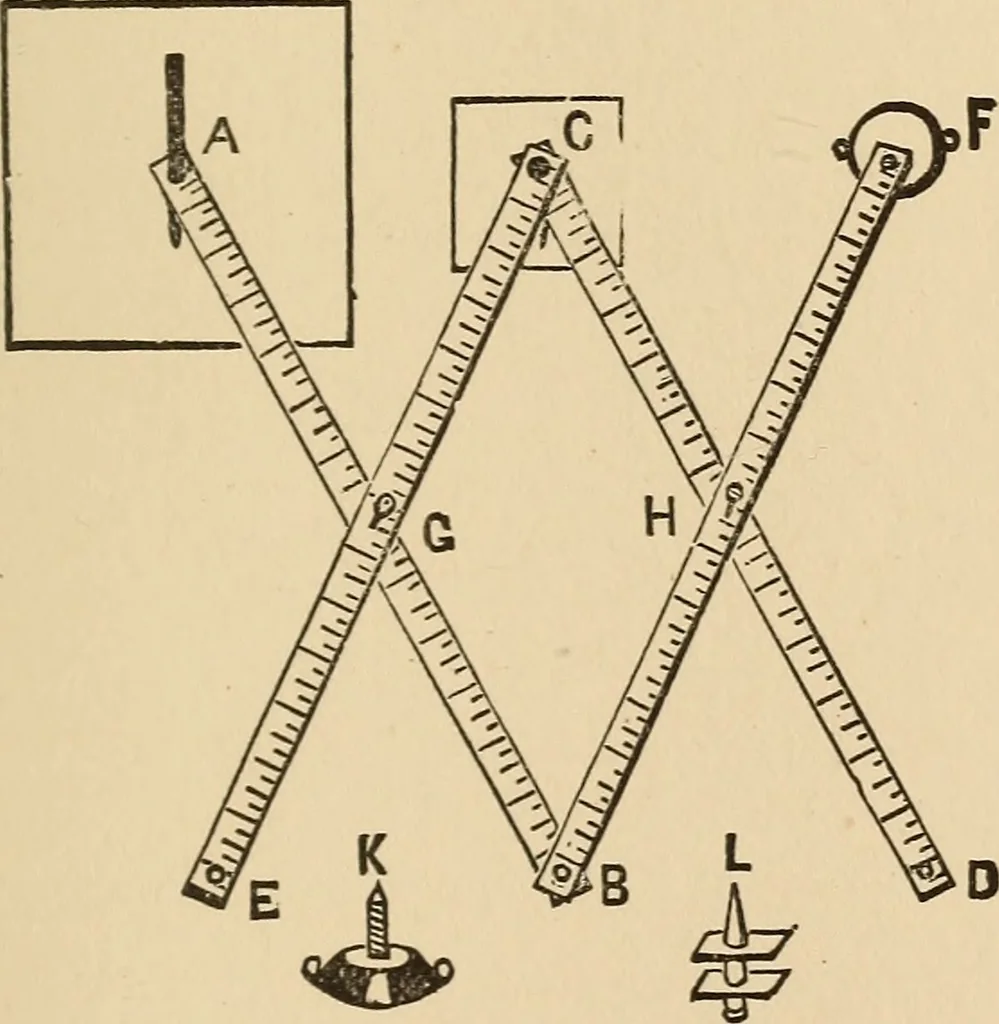

crew it in till the head is flushwith the bottom of the block. You now want a tracer or stile, for which take asimilar screw, and cut off its head by filing the smooth part down to a gentlytapering point. Slip the screw into the hinge of one of the couples, and keep itin its place by a leather… … 392 I/OIV TO MAKE A PANTAGRAPH. apparatus together in the way shown in the diagram, where b and c are the pointsat which your sticks are hinged. SHp one of the legs over the block f, and screwit down so that it will move freely but firmly with a leather washer. Place the leg(c d) under f b, and…
