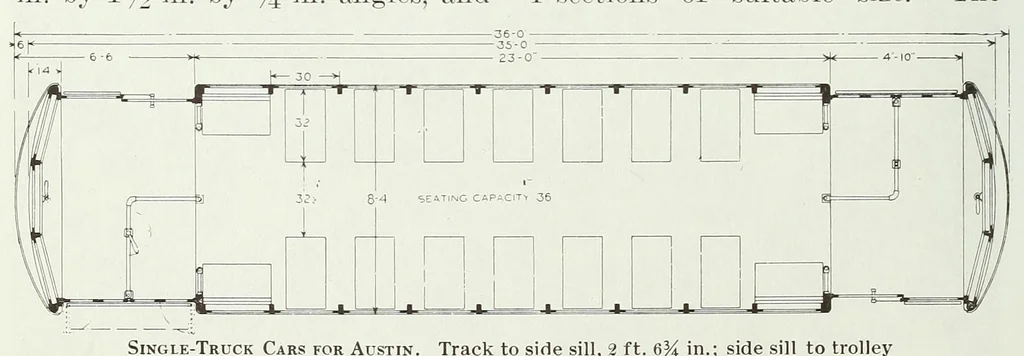

raced di- ment, is sufficiently light for a car agonally by means of 2y2-in. by of this type. %-in. bars, extending from the side Structural shapes and plates .sill angles to the center of each end were used entirely in building the sill, where they are anchored to underframe. The side girders are… … Single-Truck Cars for Austin. Track to side sill, 2 ft. Q% in.; side sill to trolley board, 9 ft. 2 in.; floor to headlining, 7 ft. 8% in. Track to step. 15% in.; step to platform, 13 in.; platform to floor, 8}f in. Estimated weight of car body, less electrical equipment, 11,000 lb. 180
