Measurement of vessels for the Panama canal (1913)
Johnson, Emory Richard, 1864-1950, United States. War Dept · Washington : Govt. print. off. · leaf 33

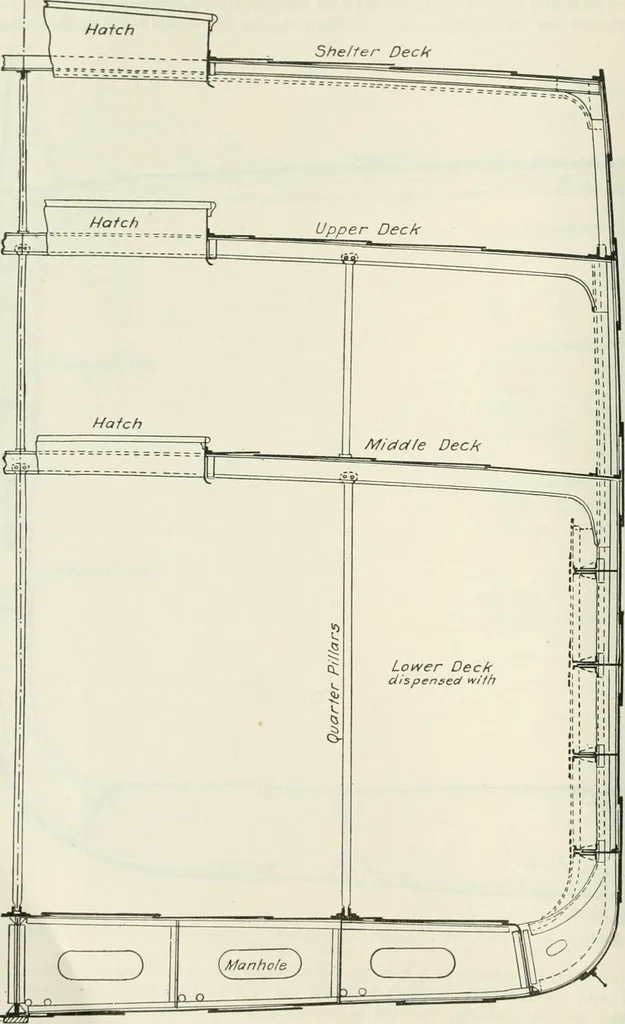

deck dispensed with, the vessel being civen compensattag slrcmrth by web frames lingers. Figure 3 is the drawing of a half cross-section of a three-deck vessel. The lower deck isomitted, and compensating strength is given the hull by introducing web frames for eachfifth frame and by stiffening the… … MEASUREMENT OP VESSELS FOR PANAMA CANAL. 19 intercostally between the web frames. The web frames extend only to the main deck; and itwill be noted that there is a main-deck beam for each frame and that the main-deck floor is ofsteel plates. The upper deck construction is lighter; there are beams…
Huebner, Grover Gerhardt, 1884 · Ships · Tonnage
