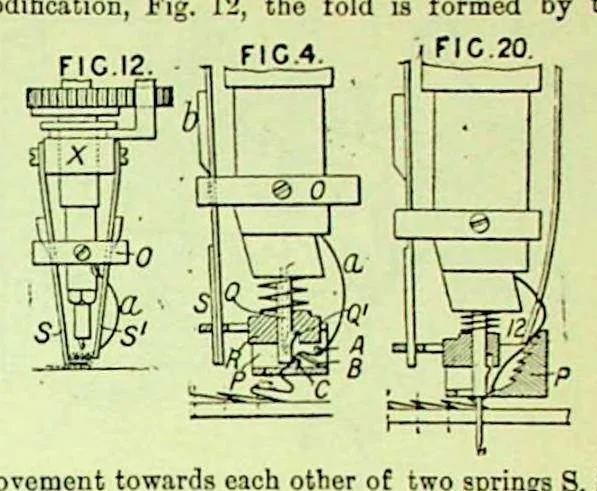

1300] when the block P moves to the left and completes the fold in the ribbon. The blocks R and P are raised by the projection Q! on the nipple Q. In a modification, Fig. 12, the fold is formed by the … Co.). May 8. movement towards each other of two springs S, S', having horizontal folding portions. The collar X, to which the springsare attached, is moved vertically by means of a cam and elbow lever, not shown, and FIC.2- is rotated from the collar O or through separate gearing from the crank…
