BSTJ 1: 1. July 1922: Philadelphia-Pittsburgh Section of the New York-Chicago Cable. (Pilliod, James J.) (1922)
leaf 16

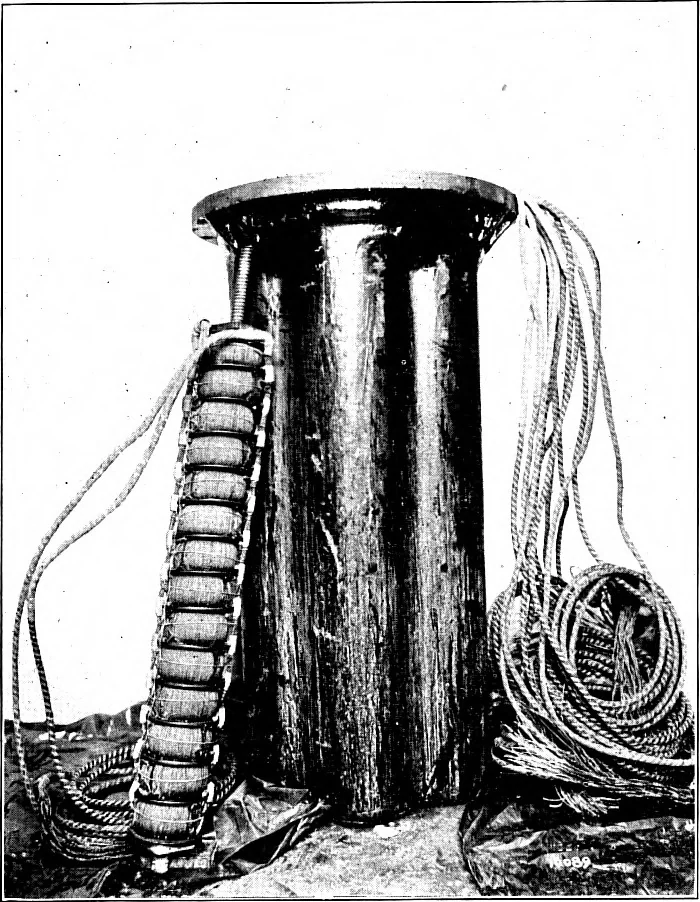

d then wrapped with cloth and theterminals brought out nearly ready for potting. Fig. 19 shows several 76 BELL SYSTEM TECHNICAL JOURNAL coils arranged on one of the spindles which will be placed in the ironpot also shown. This particular pot will hold 7 spindles and whenthey are in place, the pot… … Fig. 19—Loading Coils on Spindle, Iron Loading Coil Casejtnd Spindle Cables cable circuits alone of No. 16 and No. 19 A. W. G. could be satisfac-torily operated for distances less than 100 and 60 miles, respectively,and this is far short of our requirements in this case. In fact, we wishto operate…
