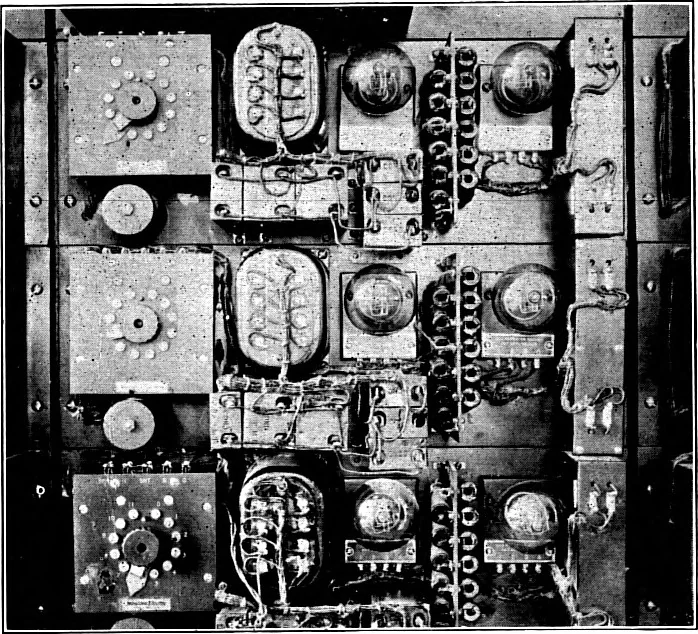

the four-wire repeater units in somewhatgreater detail. NEW YORK-CHICAGO CABLELine Impedance SI In order that networks may be used to balance the lines for repeateroperation, it is necessary as a practical proposition that the impe-dance characteristics of the lines be fairly uniform over the range… … Fig. 25—Assembly of Four-Wire Repeater Apparatus / /- 1 -. -/ V .---- -- , ia --^, \ - .J. 1500 2000 Coil »in»cto In 13th iictioh C«uiv«llNi lNooet»N« Fig. 26—Line Characteristics—A Cable Circuit in Normal Condition 82 BELL SYSTEM TECHNICAL JOURNAL resistance component found in impedance…
