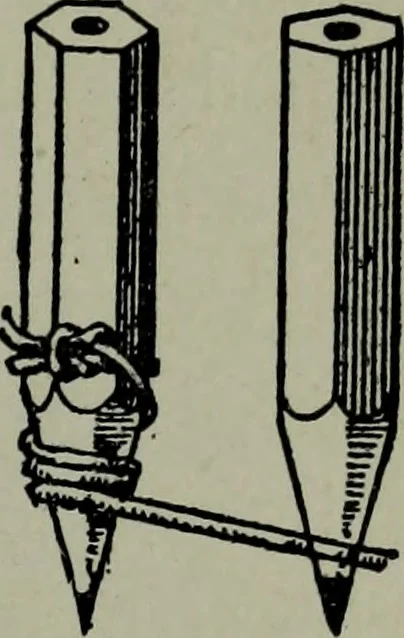

Fig. 72. Fig. 73- either pierces the string or the string is loopedto hold the pencil, near the other pencil, whichleaves the arrangement -ready for work. Todraw the scroll the pencils must be kept vertical,the point of the first kept firmly in the hole orcenter of the figure, and the second pencil…
