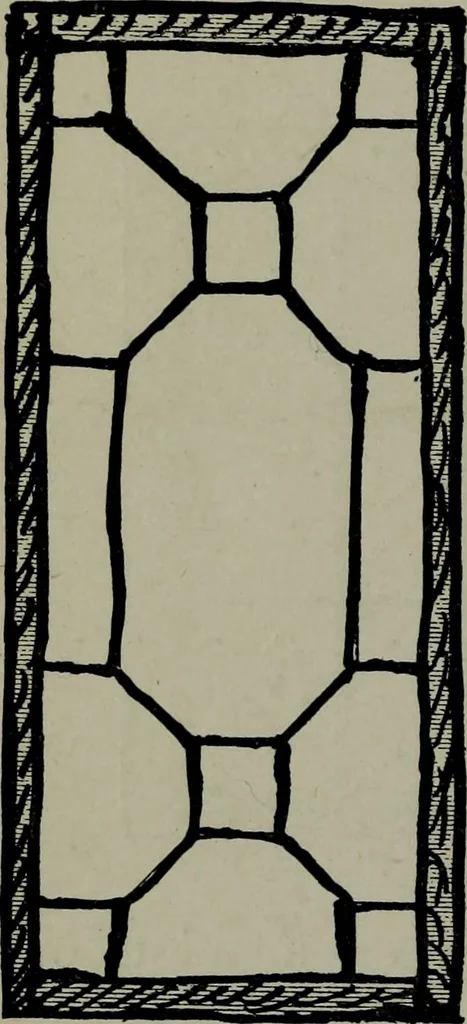

ents and thesmaller dimensions shouldexactly agree with the over-all measurement given. In drawing pencil linesthey should always bedrawn longer than the ac-tual length of the lines tobe inked in, so that theexact point of intersectionwith other lines can be betterseen. When the drawing has been… … Fig. 97. ARCHITECTURAL DRAWING SELF TAUGHT 105 of the finished drawing. These constructionlines, as they are called, should be drawn aslightly as possible, so as to be easily removedwithout greatly damaging the surface of thepaper. When drawing circles or arcs of circleswith the compasses, a little…
