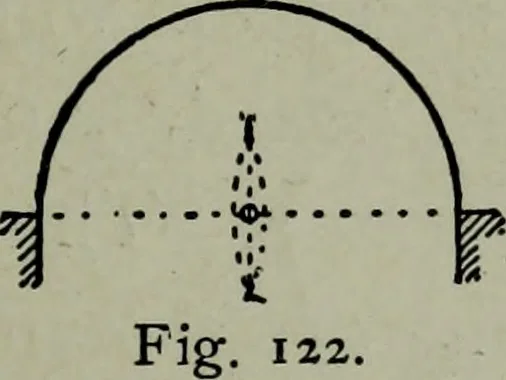

le to draw,though it is not by any means good architecture.These examples are sufficient for my purpose, AI».e:HITECTURAL DRAWING SELF TAUGHT 127 and should the student desire to know moreabout the bonding of brickwork, he may procurea copy of a manual on brick and stone work Ihave in preparation,… … Fig, 123, him on this point, the following examples aresubmitted for him to study and work out. Thearch shown at Fig. 122 is simply a semicircularone, and the simple line of arch is drawn froma center as shown. When an arch of this formis used for brick or stone work as shown at Fig.123, a new set…
