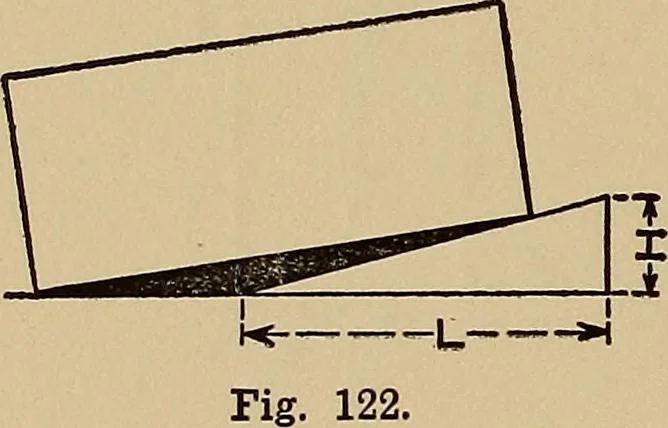

owing rules are for suchwedges, acting under pressure only on the headof the wedge, or at the point of the wedge bydrawing. 50 MECHANICAL DEAWING To find the transverse resistance to the wedgeor weight. Multiply the power by the length ofthe slant side of the wedge, and divide by thebreadth of the… … Multiply the weight by the breadth of the wedgeand divide by the power. To find the breadth of the wedge. Multiply thepower by the length of the slant side of the wedge,and divide by the weight. F= Force required. P=Kesisting power. s H S=Slant side of wedge=VB.^+h^ Note.—^For all practical…
