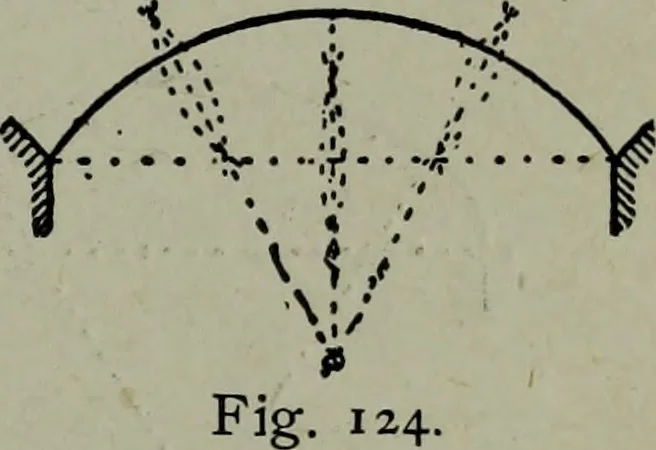

simple curves may be definedas those that are described from one center,as Fig. 122, or by a continuous motion, as theellipse, parabola, hyperbola, cycloid, andepicycloid; and complex arches are thosewhich are described from two or more fixed centers, as manyof the Gothic and Moorisharches are.… … 132 ARCHITECTURAL DRAWING SELF TAUGHT A segmental arch drawn from two centers isshown at Fig. 126. The centers are shown so•that the student will have no trouble in describ-
