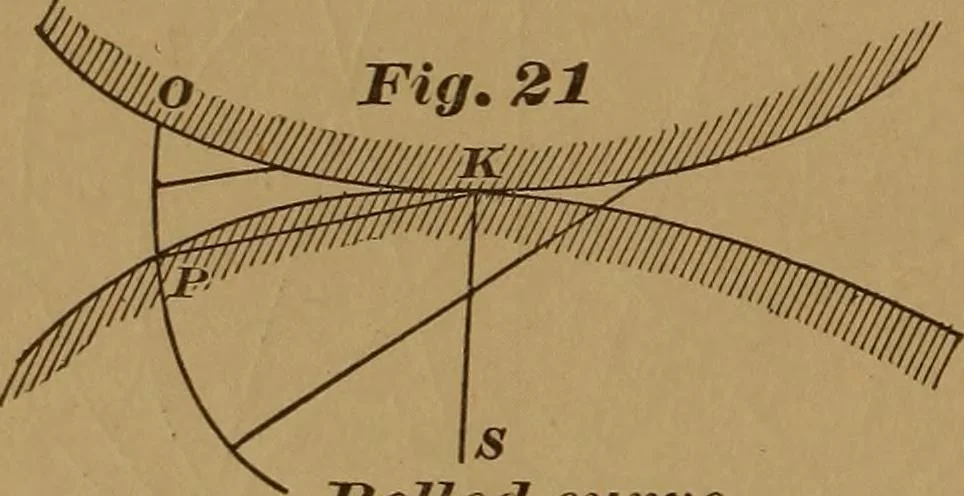

from the tracing point Pto the point of contact K^ is always rotating,for the instant, about ^ as a center, thecurve 0 P will always be at right angles to itat P, and it is, therefore, always a normal tothe curve. As each one of the normals isseparate from the preceding and following,and the normal… … When the tracing point is any ordinarypoint on the roller, the curve traced will be atright angles to the pitch curve, but when itis the pole of a spiral it may cross at anangle. Fig. 22. Although rolled curves and odontoids areidentical, they cannot readily be consideredthe same, for the cycloid…
