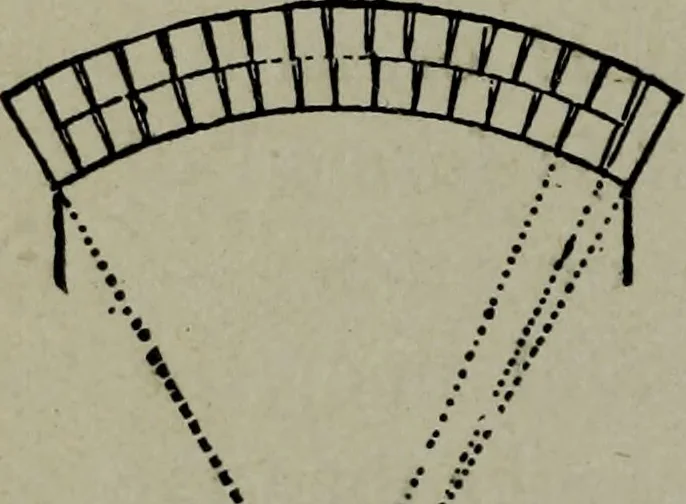

132 ARCHITECTURAL DRAWING SELF TAUGHT A segmental arch drawn from two centers isshown at Fig. 126. The centers are shown so•that the student will have no trouble in describ- … -. . . .» .V . . 1 • • < - • 4 Fig. 126. Fig. 125 ing it. The joints for brick or stone work maybe laid out around this arch, by using the centersas fixed points and running radial lines throughthe curved lines.The diagram shown at Fig. 127 illustrates a
