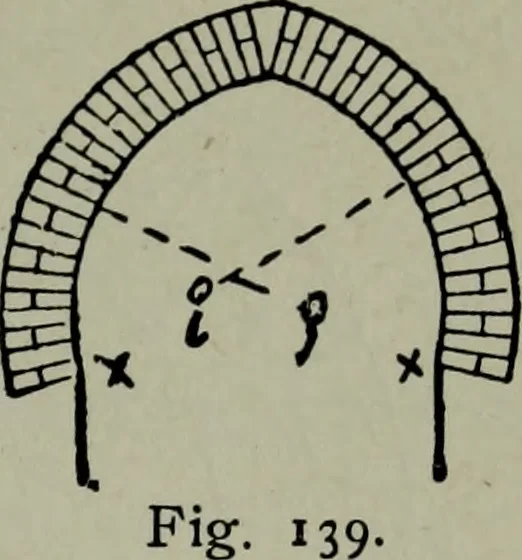

Fig. 138. of all arches when properly constructed and isoften employed for tunneling and other heavywork where great resisting strength is required. The figure shown at 139 is sometimes called aGothic horseshoe arch because of its beingpointed. It is somewhat similar to the last, butis struck from…
