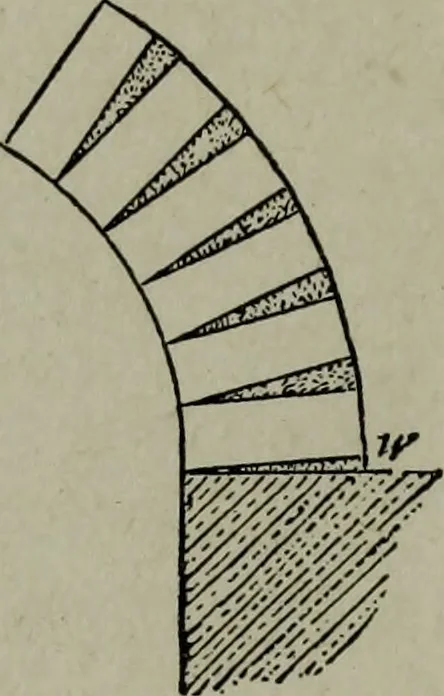

Fig. 140. the mortar joints in this are much wider at thetop than those of the portion /i/i, built in ringshalf a brick in thickness. The line of joints inboth these examples are radial, all being drawnfrom the center point. The most common—so-called arch—is what istermed gauged straight arches,…
