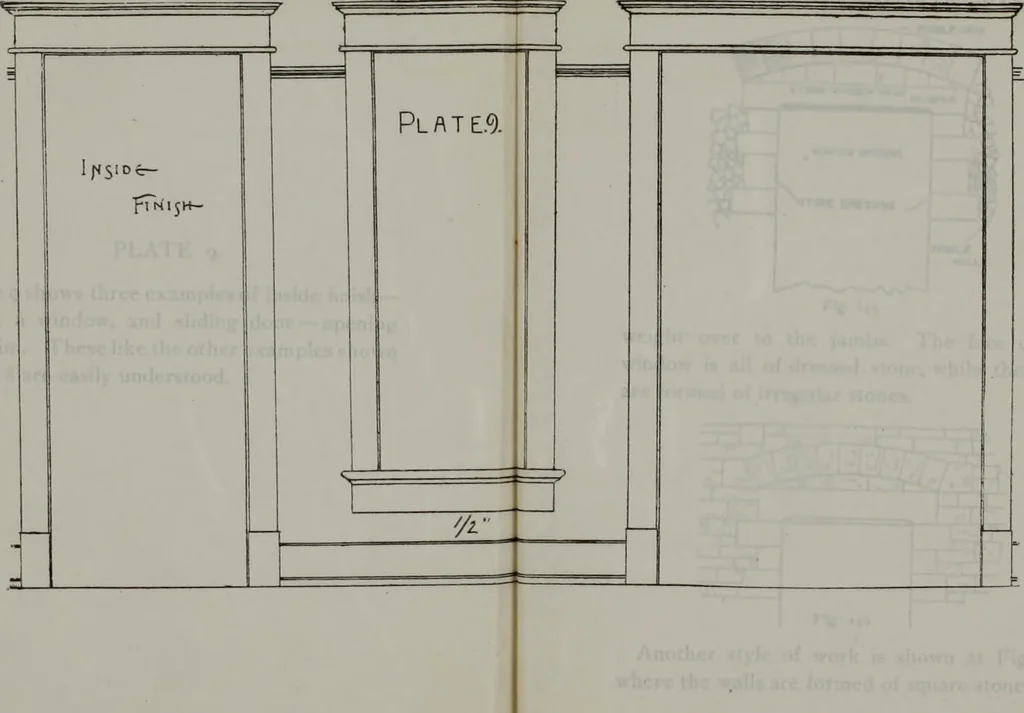

verycommon one in stonework and shows how thestyle of work is prepared. It will be seen thatthe joints are generally radial, while horizontaljoints are formed to receive the stone above. Another style of opening in stonework isshown at Fig. 145, where the head of the 144 ARCHITECTURAL DRAWING SELF… … i_ I ! Rffvasrr:: ARCHITECTURAL DRAWING SELF TAUGHT 145 window or door is flat. There is a relievingarch thrown over the lintel or cap to carry the -RUBBLE ARCH
