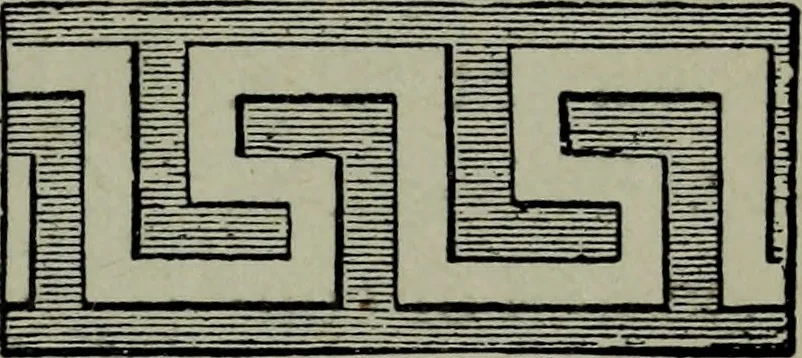

n thickness asshown in the example. Lines must not be leftshort, but must join the cross lines as thoughthey were under them. To draw a panel ofinterlacing strap work, as shown in example,without a flaw, is fairly good workmanship. ARCHITECTURAL DRAWING SELF TAtTGHT 171 The example shown at Fig.… … compasses and set squares and exercise consid-erable judgment. This example is a strapworkfret, and is a good one to follow for practice. Fig. 184 is a modifica-tion of the same orna-ment, a quarter circle be-ing used on all externalangles instead of havingthe lines join with a rightangle. In other…
