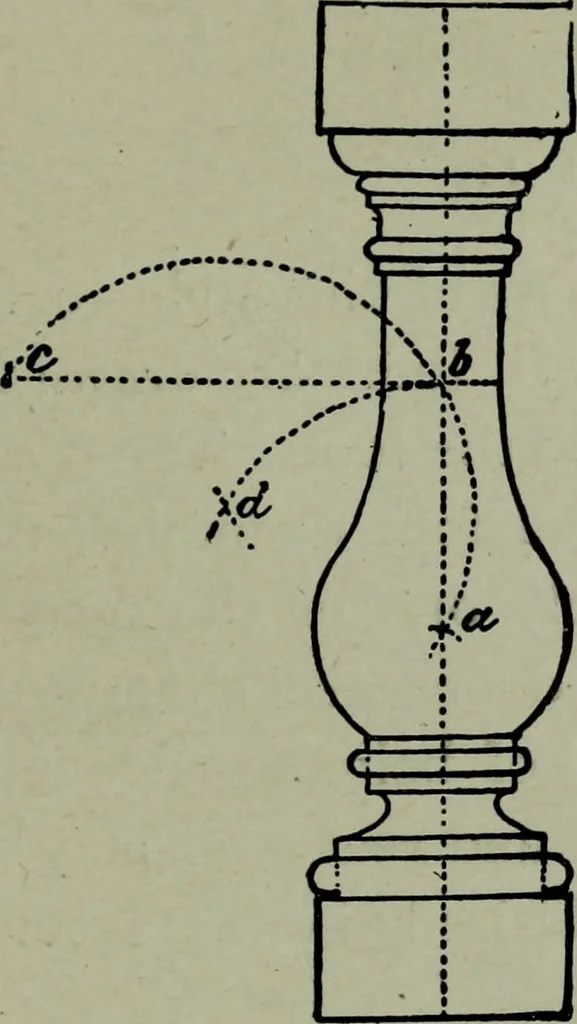

ARCHITECTURAL DRAWING SELF TAUGHT 175 readily be drawn by the student, as the centersfor the various curves are given. The centerof the lower curve is at a; centers for the uppercurves may be found by drawing a line c b; froma and b describe arcs cutting in d, with radius d
