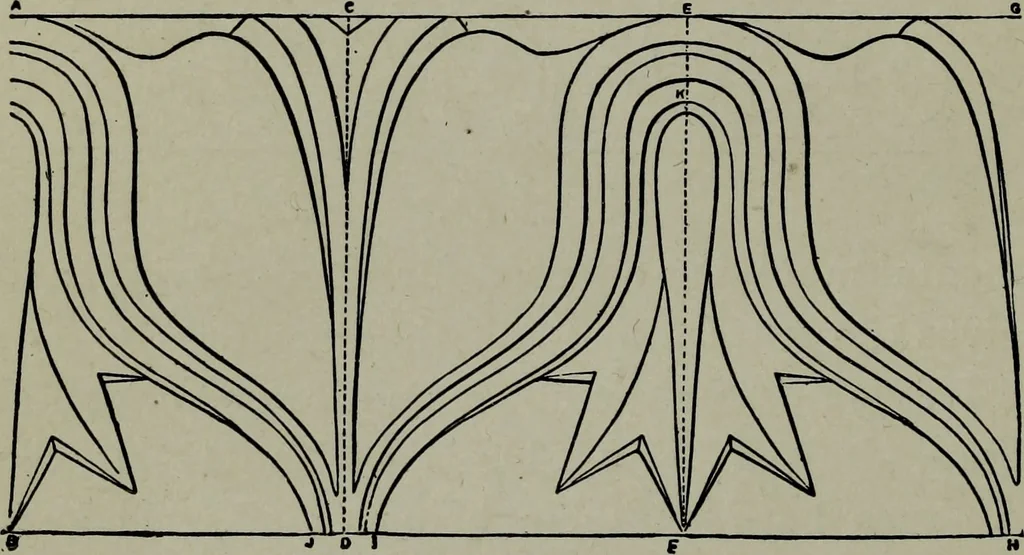

nd that A B and E F are thecenter lines of the tongue or leaf between thehearts. Now draw the curve J, and balance itby the curve I.It will of course be understood that although 180 ARCHITECTURAL DRAWING SELF TAUGHT the Instructions and lettering refer to the com-plete figure, it is intended that… … Fig. soo. drawn in each before proceeding any further.On no account should one portion be completedbefore the ethers have been sketched, for aseach set of curves Is drawn the drawing becomesmore complex, and the difficulty of accuratebalancing Is increased. When these curves have been completed,…
