Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 235

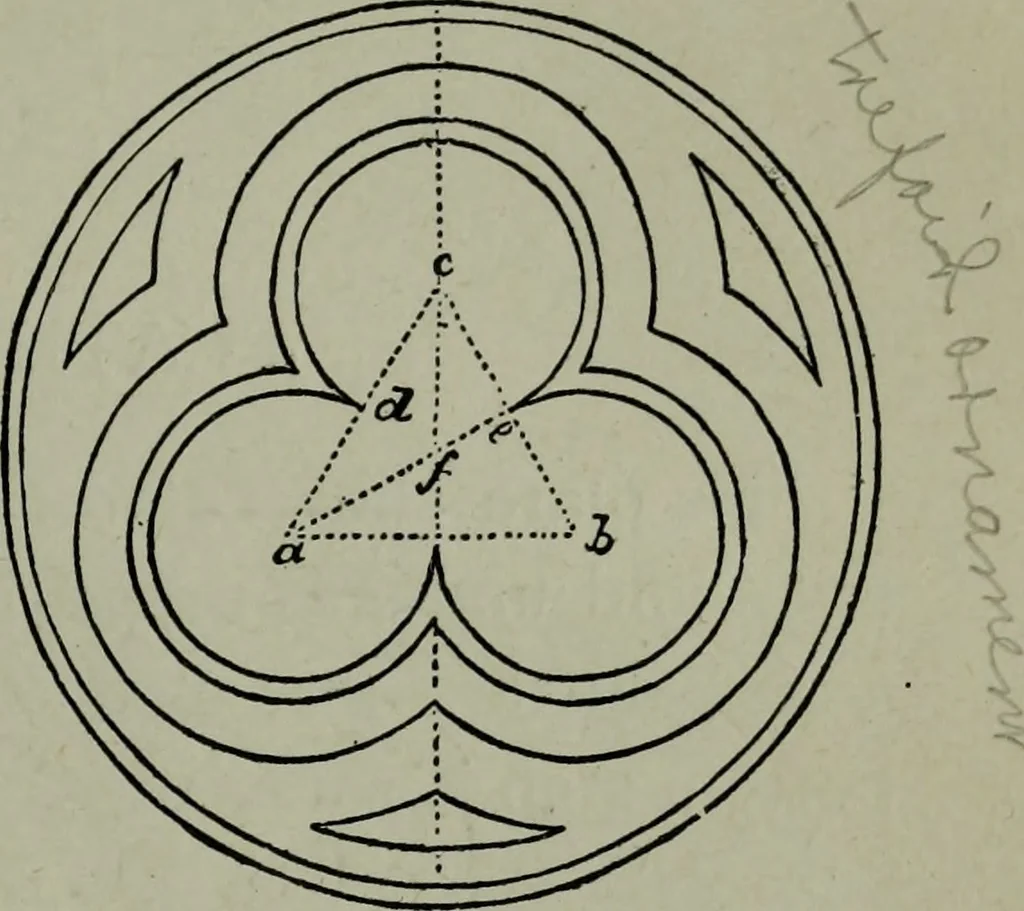

vation, may besaid to constitutethe Gothic style. The illustrationshown at Fig. 214represents the tre-foil ornament, as used in windows and otherdecoration, and is formed as follows: Drawthe equilateral triangle as shown by thedotted lines a b c, then bisect it as at c f and ae, cutting the line c… … Fig. 214. 192 ARCHITECTURAL DRAWING SELF TAUGHT PLATE 12. This plate shows a portion of the stairs, com-plete and under construction. The newel postand balusters are plain and chamfered. Thebottom step is rounded off at the newel. V. %. ? N
Architectural drawing
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
