Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 600

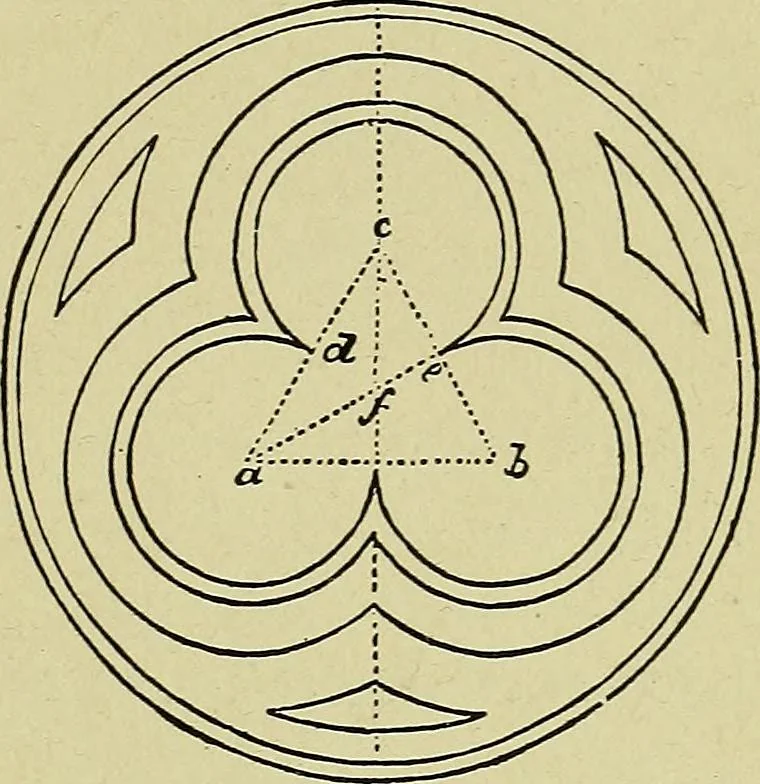

vation, may besaid to constitutethe Gothic style. The illustrationshown at Fig. 214represents the tre-foil ornament, as used in windows and otherdecoration, and is formed as follows: Drawthe equilateral triangle as shown by thedotted lines a b c, then bisect it as at c f and ae, cutting the line c… … Fig. 214. 192 ARCHITECTURAL DRAWING SELF TAUGHT PLATE 12. This plate shows a portion of the stairs, com-plete and under construction. The newel postand balusters are plain and chamfered. Thebottom step is rounded off at the newel. .TjoTiTT-vrT-TTRAT. DRAWING SELF TAUGHT 193 ^^C^Ld o^^C^LRf)
