Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 241

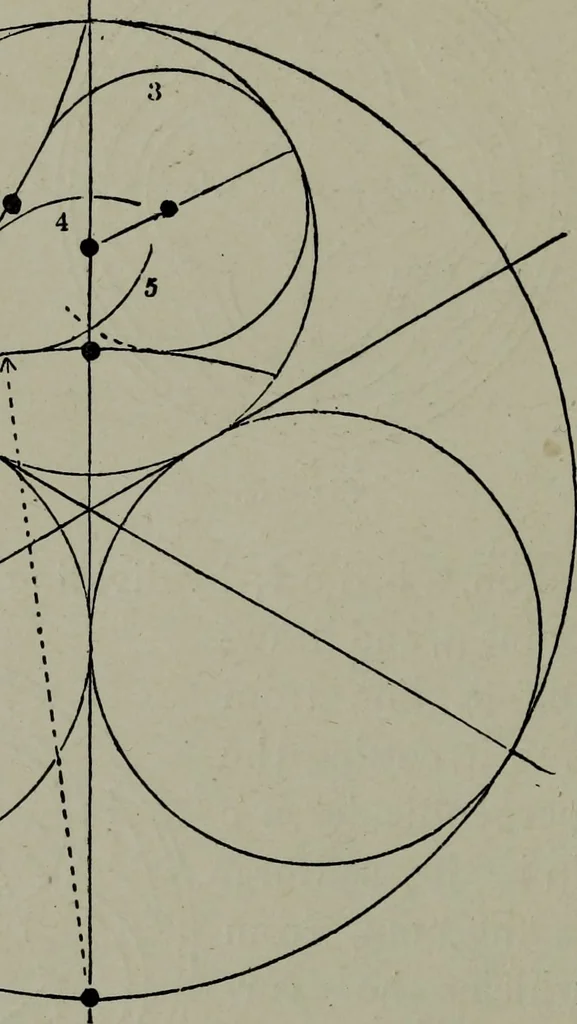

Fig. 216. 194 ARCHITECTURAL DRAWING SELF TAUGHT Two more examples, and then I have finishedin this style, but these are elaborate and will,doubtless, try the skill and patience of the stu-dent, but the results will well repay for the labor, … Fig. 217. and will open up new and unexplored fields forpractice, for hundreds of designs may be formedby aid of the knowledge gained in understandingthe examples herewith presented. ARCHITECTURAL DRAWING SELF TAUGHT 195 The diagram shown at Fig. 217 exhibits theskeleton work for the finished…
Architectural drawing
