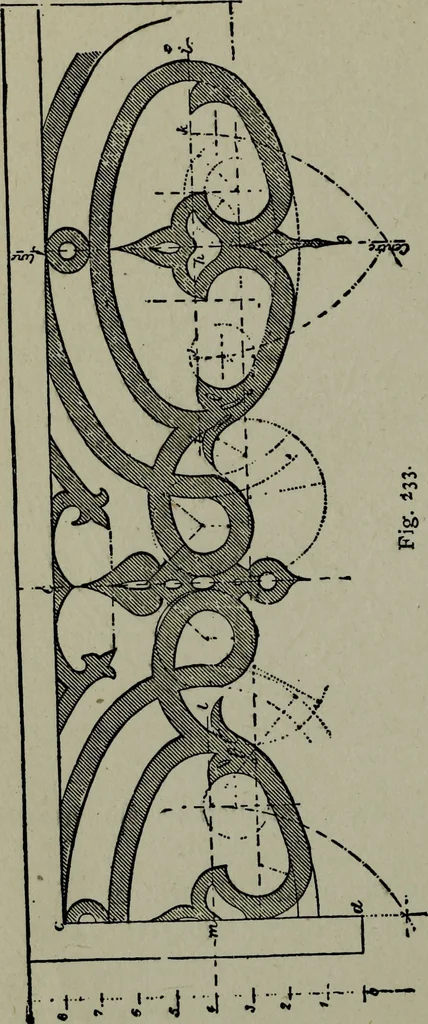

he distance b, f, set off to the ARCHITECTURAL DRAWING SELF TAUGHT 215 points 1, and m, and these will be the centers ofarcs forming the upper part of the design. Thdlines and centers for the spiral terminations of Fig. 232. the leading curves thus described as shown inthe drawing. The skeleton… … center, while a,j, d, i, m and cshow the divis-ions and radia-ting lines of one-half of the fig-ure. As the cen-./T ters may all beframed at theintersections ofthe dotted lines,further explan-ations are un-necessary. I close thisdepartment byillustrating a nornament inwhich the…
