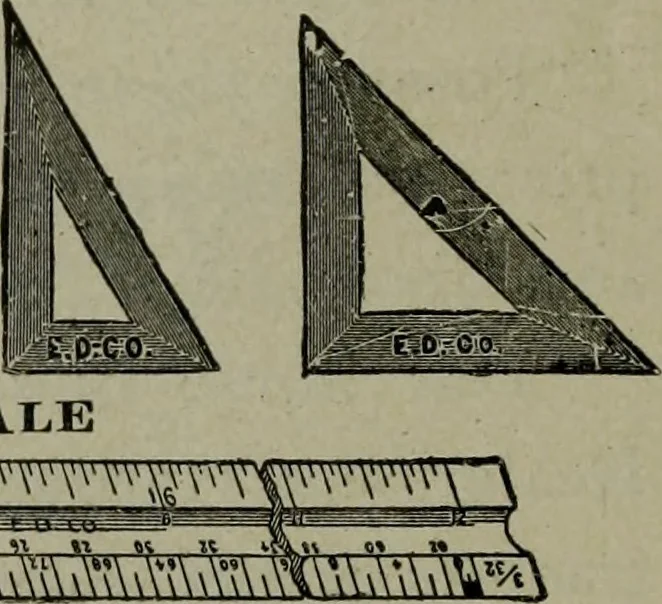

T SQUARE No. 2070. 24 in.. plain blade, fixed head. Each. $0.35 TRIANGLE No. 2006. 8 in., hardwood, 30°x60°. Each $0.35 TRIANGLENo. 2007. 6 in., hardwood, 45°. Each , $0.35 TRIANGULAR .SCALE No, 1626. 12 in,, divided, 3-32, 3-16, Vs, U, %, 3^, H, 1, IVb, 3 in. to the ft.; 1-16 inEach $1.00 CURVE…
