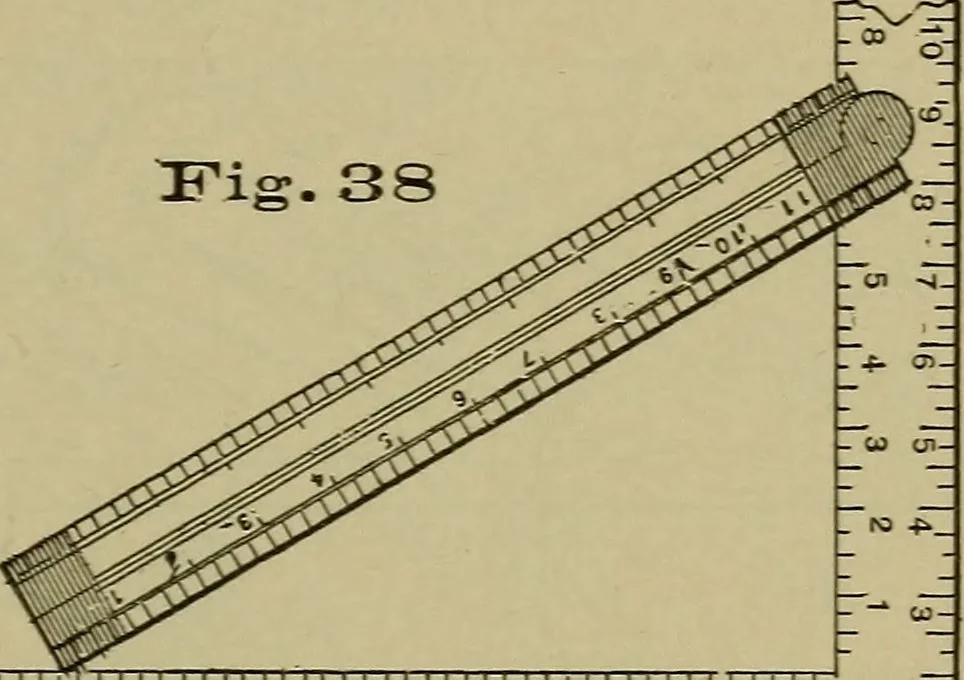

BENCH TOOLSo 17 as shown. Cut to line, and the board will fit. When sharpangles, as at /, enter into the outHne, greater accuracy willbe attained if the point / is located by measuring from thebase line /^/. … :si;siiT 28. Combining Measuring Appliances. —To find the hypot-enuse of a right-angled triangle when the other two sides areknown, use the rule and framing-square, as shown by Fig. 38.Suppose in Fig. 30 the lengthab = ^y\ and the length ac= 9I-; to find the length be,apply one end of the rule…
