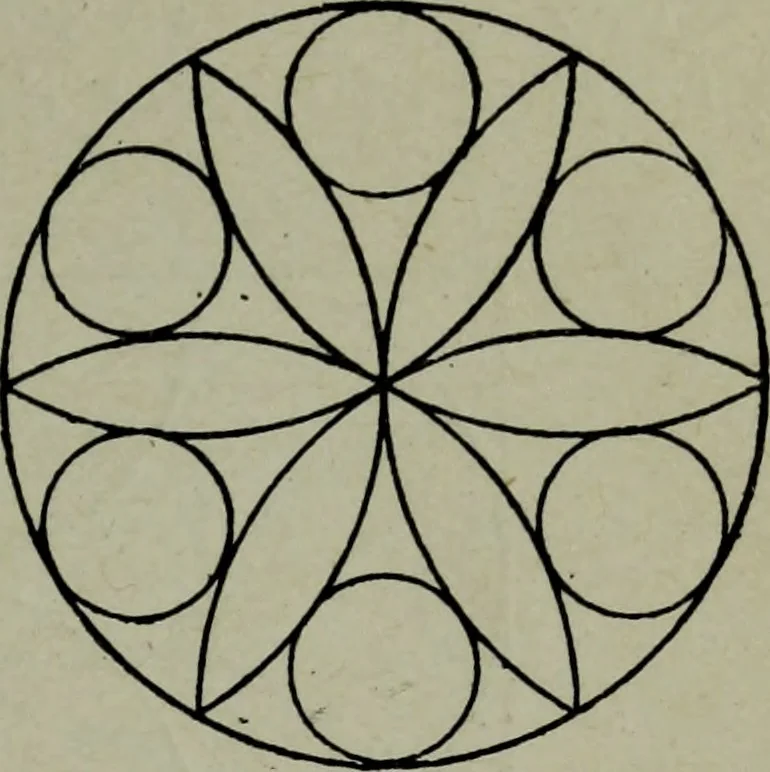

ow to 1 in. radius, and, lastly to 1% in.radius, checking the curves before actually ARCHITECTURAL DRAWING SELF TAUGHT drawing them, by seeing how they fit with thosealready drawn. Here is an example, Fig. 36, made upaltogether with curved lines and which offersgood practice. This re-quires…
