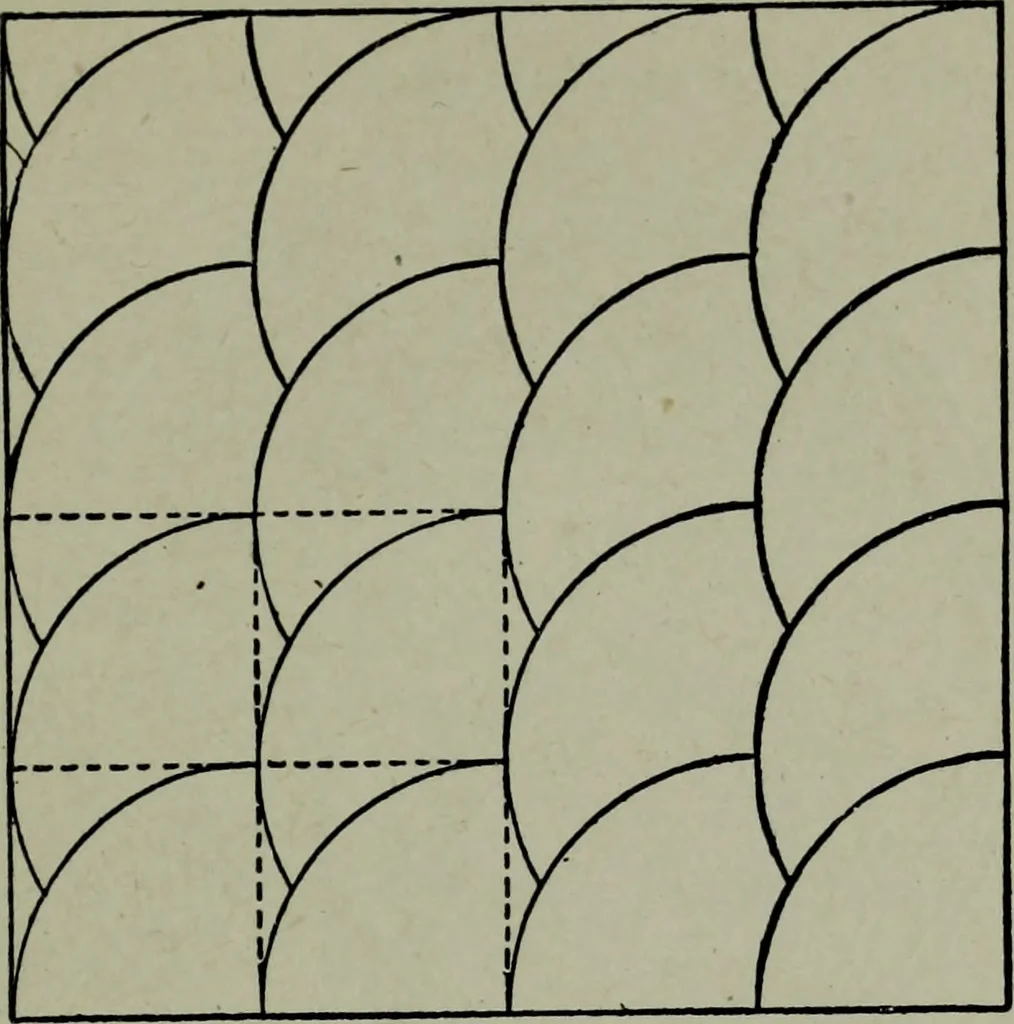

s the easiest of them all, as itis formed of curves drawn with one point of the Fig. 38. compass resting on one corner of each of thesmaller squares which are shown by the dottedlines. The three examples shown in Figs. 40, 41, and42 are a little more difficult to draw than theprevious ones. Fig. 40… … of an ornamentis in frequentuse in churchwork as the tri-angle is sup-p o s e d to besymbolic of theTrinity. Thestudent shouldcopy this oftenenough so that Fig- 39-
