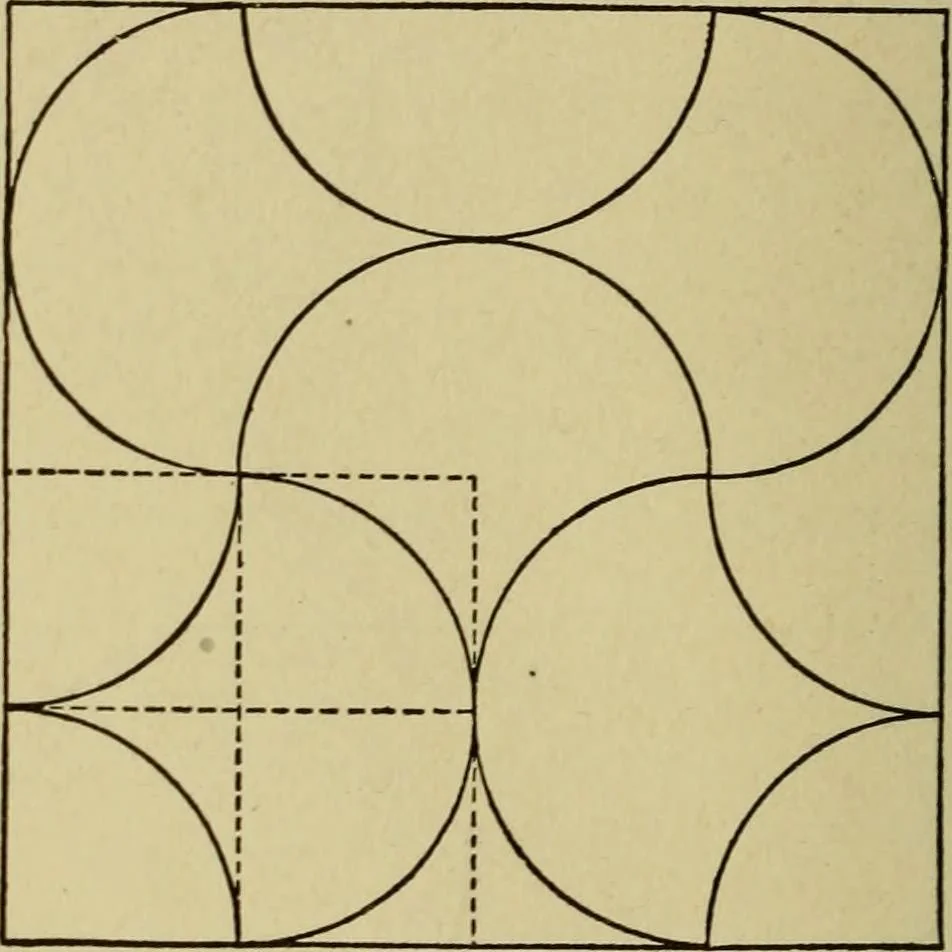

i^ig. 37. 58 ARCHITECTURAL DRAWING SELF TAUGHT curves are drawn with one radius. The mannerof getting the centers is shown by the dottedlines. Figs. 38 and 39 exhibit another combina-tion of curves which is easy to draw. To makeFig. 39 is perhaps the easiest of them all, as itis formed of curves… … Fig. 38. compass resting on one corner of each of thesmaller squares which are shown by the dottedlines. The three examples shown in Figs. 40, 41, and42 are a little more difficult to draw than theprevious ones. Fig. 40 may be termed a trefoilornament, as the central divisions are drawn…
