Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 82

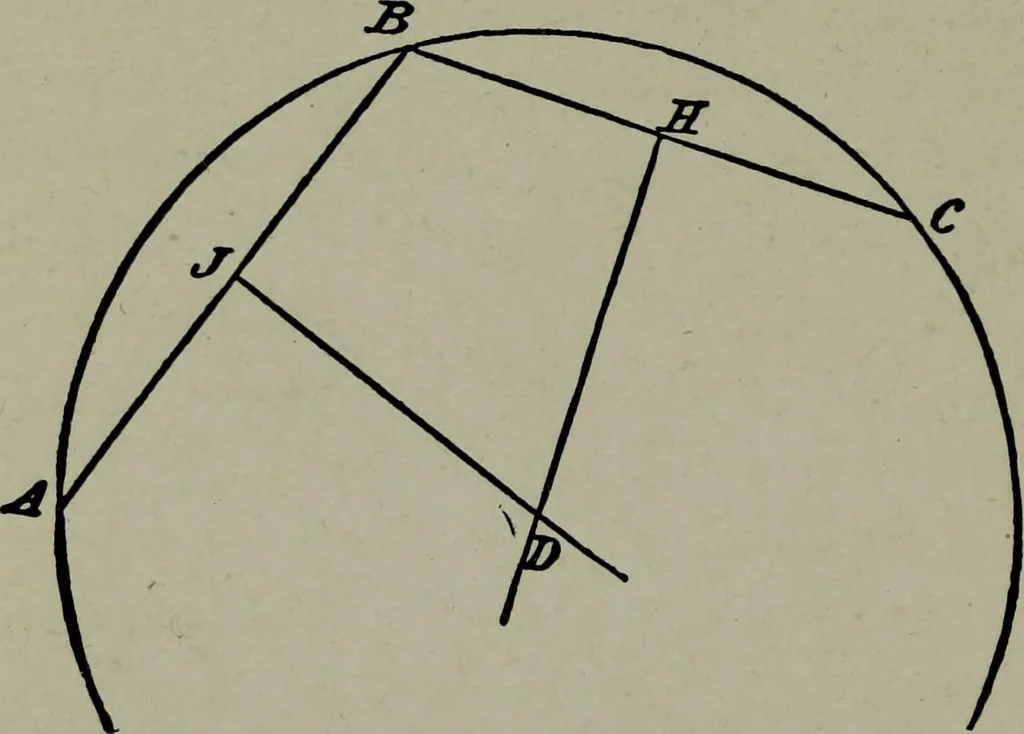

^ be obtained by the useof the compasses alone as may be seen as follows: 62 ARCHITECTURAL DRAWING SELF TAUGHT Suppose AB, Fig. 44, to be the curve, from thepoint A and B strike ares of equal radius inter- … Fig. 43. seating at c and </, and draw a line through theintersections cutting the arc at e. This line will pass through thecenter. Then frompoints e and b, witha rather shorter ra-dius, strike arcs in-tersecting at/and^,draw a line throughthese intersections,and where the pre-vious line is cut…
Architectural drawing
