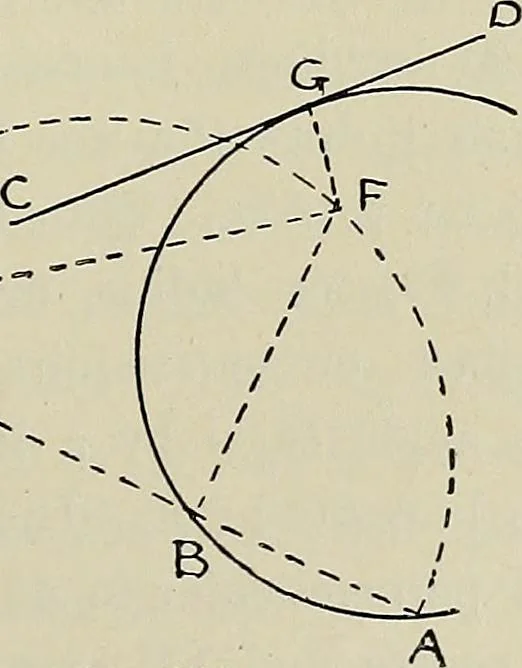

E. With E as centre, and ED as radius, draw the required circle. Peoblem 91. To draw a circle which shall joass through the two givenpoints A and B and touch the given line CD. Join the two given pointsAB, and produce the line tillit meets the given line CDproduced in E. On AE de- /scribe the… … Fi^. 155. 66 PRACTICAL PLANE GEOMETRY Peoblem 92. To draw four equal circles, %uith radius equal to given line E, totouch tivo given lines AB and CD, which are not parallel. ^ ^ Bisect any two adjacent angles by the lines FG- andHK. Draw the lines LM andNO parallel to the given lineCD, at a…
