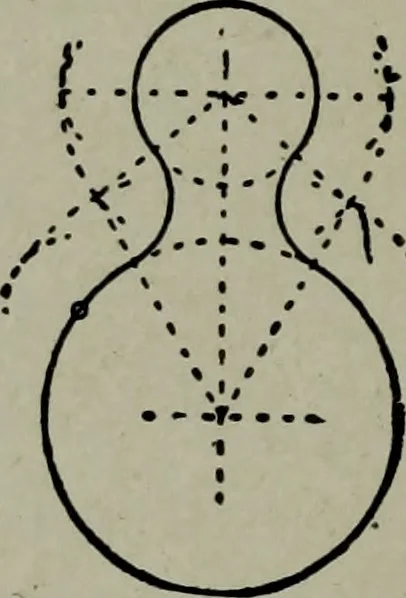

Fig. 50. Fig. 51. Fig. 52. curve. In every case it will be observed that theperpendicular line from the center of thejunction curve to the line, or the line joining thecenters of the two curves, will give the exacttermination of the junction curve. Fig. 51 is practically the same as Fig. 49…
