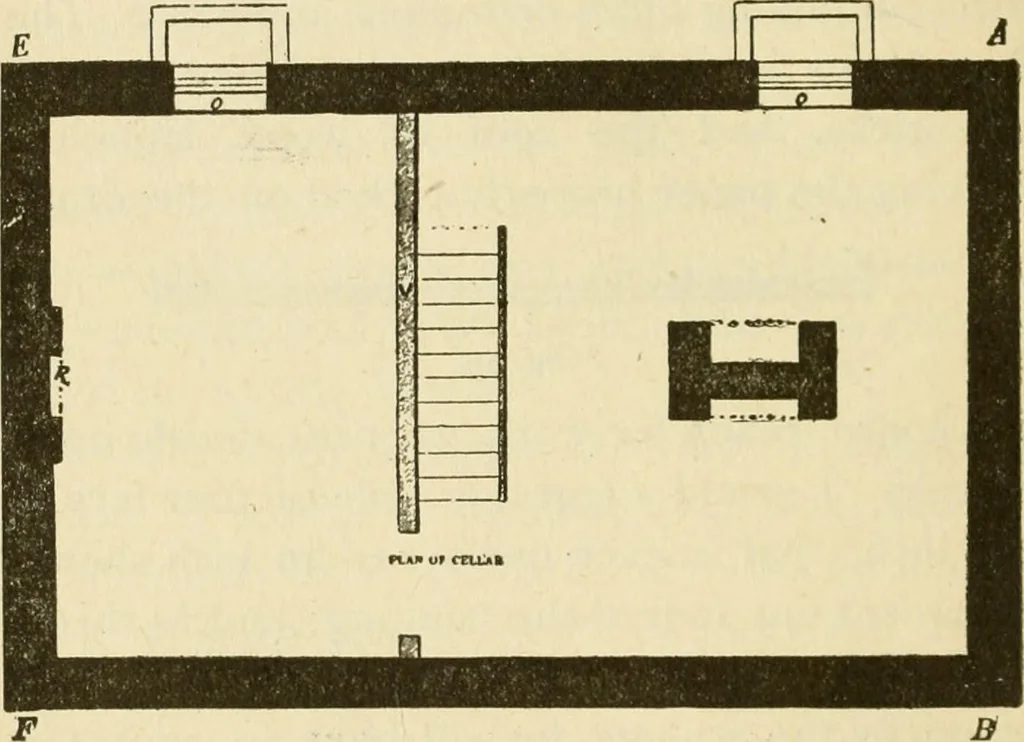

encil line from your left hand across the papernear the lower edge of the board. From thisline, draw another at a convenient point at rightangles to the first line. Make these lines with a 108 ARCHITECTURAL DRAWING SELF TAUGHT fine pointed HB pencil, and so light that theymay be easily erased. From… … Fig. 100. Cellar Plan. distance of 4^ inches, which contains 19 quarterinches and one }i of an inch. The 19 quarterinches represent iq feet on scale, and the % ofan inch represents 6 inches, thus, making thetotal distance between E and F, 19 feet and 6inches. Square over from E to A, and the linesA…
