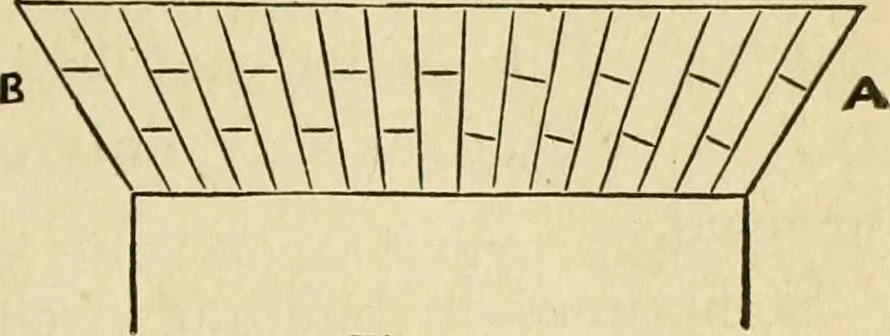

ilt in ringshalf a brick in thickness. The line of joints inboth these examples are radial, all being drawnfrom the center point. The most common—so-called arch—is what istermed gauged straight arches, and with these,in brickwork, the draftsman will have the mostto deal, and I purpose showing him… … Fig. 141. upon the angle given to the skewbacks orspringings, and varies with the distance of eachvoussoir fromthe springing. The skew-backs are gen-erally inclinedat 60° from thehorizontal, and are struck by prolonging the sidesof an equilateral triangle, as shown on Fig. 142..The joints give a…
