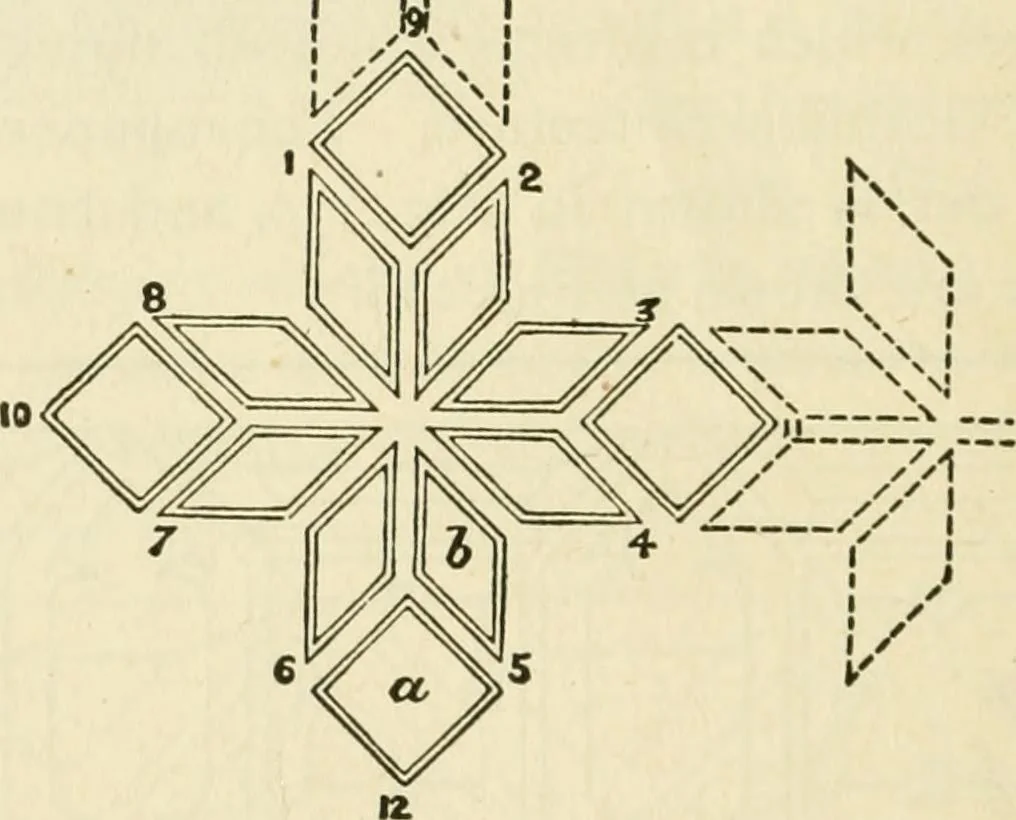

- found. 168 ARCHITECTURAL DRAWING SELF TAUGHT A Still more complicated figure is shown a<Fig. 178. This may be formed as follows: Ifthe points 12, 23, 34, 45, 56, 67, 78 are joined, anoctagon will be formed, and a square by joining9 10, 12 II. The octagon forms the basis of thecombination, and… … Fig. 178. which may be done as in Fig. 179, by forming asquare, and thereafter an octagon the side ofwhich is equal f e, f g. Draw lines, i i m, distantfiom each other equal to the distance betweenthe rhomboids in Fig. 178. Parallel to thediagonal lines c b, a d, draw lines equal to i i.From e, one…
