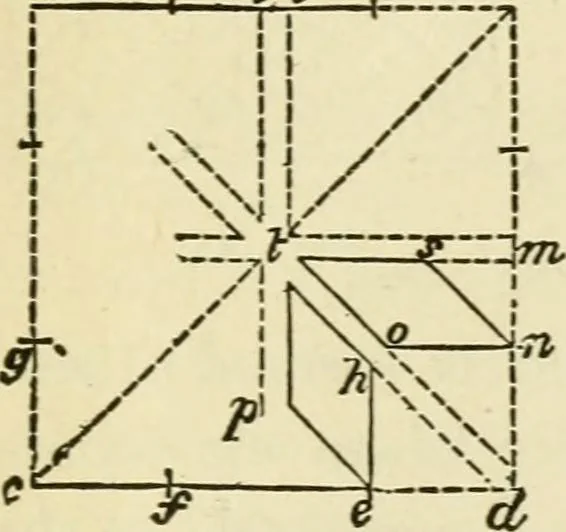

on side, draw a line ARCHITECTURAL DR.\WING SELF TAUGHT 169 perpendicular to c d, joining the diagonal a din h. From n, the end of another side of theoctagon, draw parallel to c d, a line cutting thediagonal d a in o, parallel to e h, k t; draw linesp t, n s; two of the rhomboids will thus…
