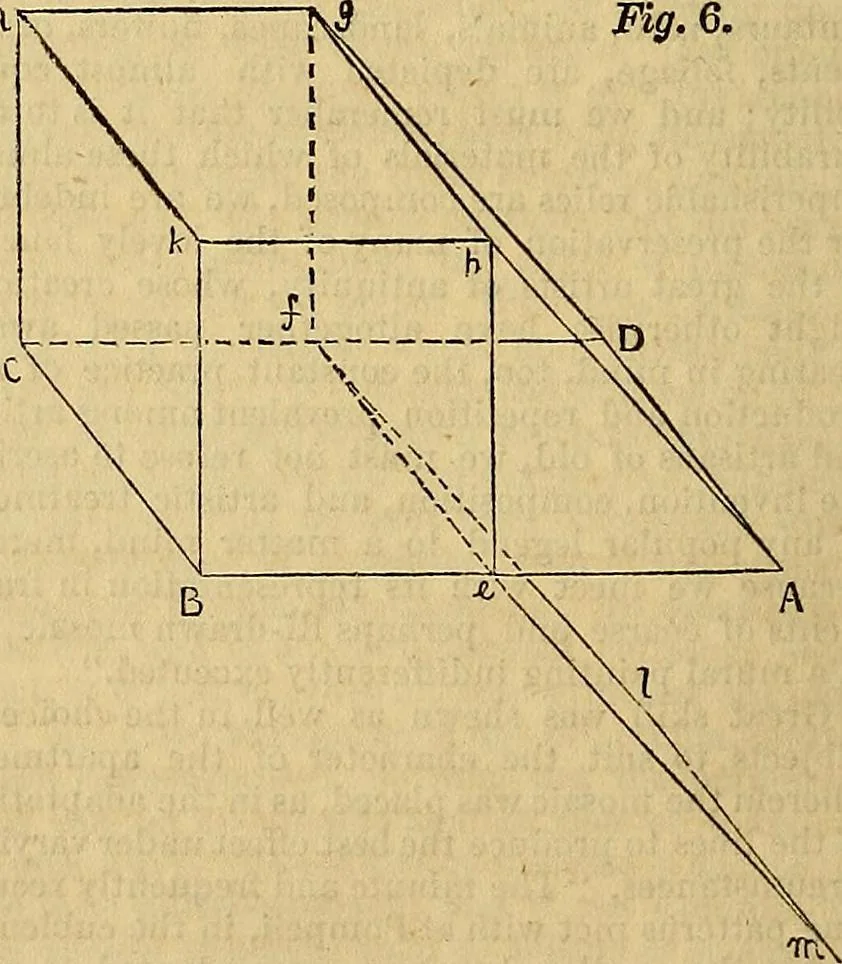

join nlo, and the threeplanes are constructed as required.To construct tioo Horizontal Planes, two VerticalPlanes, and two Inclined Planes; these lasttwo parallel to each other, and one of themabove, the other below the Horizontal Plane,or level Qround.Construct the horizontal plane A B c D, fig.… … draw A h, making an angle of 50 deg. with A b,draw D g parallel to A h, draw e m parallel andequal to A h, draw also / I parallel and equal to em, join I m. Here the six planes ma beveryclearly understood by attentively viewing thefigure. (To be continued.) The new church recently erected at…
